(Solved): show work (1) Using the simple diode circuit shown in Fig. 7.1 calculate the current through the dio ...

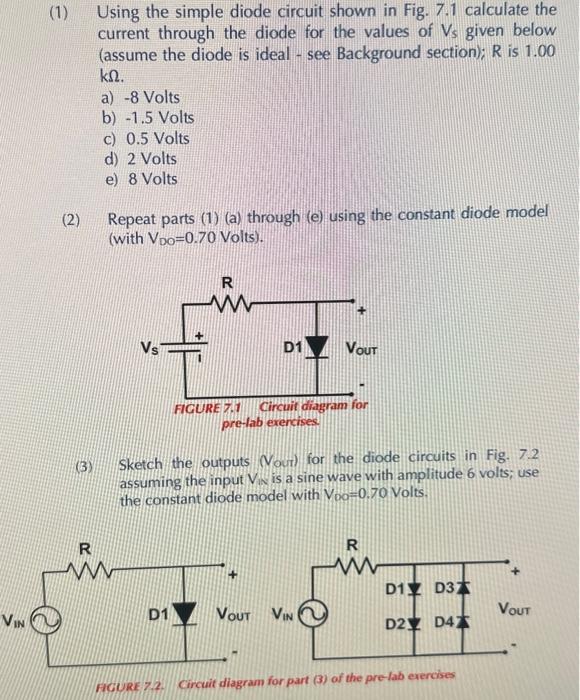

(1) Using the simple diode circuit shown in Fig. 7.1 calculate the current through the diode for the values of $$V_s$$ given below (assume the diode is ideal - see Background section); $$R$$ is 1.00 $$\mathrm{k}?$$. a) -8 Volts b) -1.5 Volts c) 0.5 Volts d) 2 Volts e) 8 Volts (2) Repeat parts (1) (a) through (e) using the constant diode model (with $$V_{DO}=0.70$$ Volts). (3) Sketch the outputs (Vout) for the diode circuits in Fig. 7.2 assuming the input $$\mathrm{V}$$ is is a sine wave with amplitude 6 volts; use the constant diode model with $$V_{\text{oo }}=0.70$$ Volts. FHCURE 7.2. Circuit diagram for part (3) of the pre-lab exercises
