The three water-filled tanks shown in the figure below are connected by pipes as indicated. If minor losses are neglected, determir the flow rate in each pipe ( + is out and - is into the reservoir) Assume $h_{A} = 50 m, h_{B} = 90 m, h_{C} ? 20 m, ?_{1} = 150 m, ?_{2} = 100 m$ , and $?_{3} = 200 m$ .

Question

show work

student submitted image, transcription available below

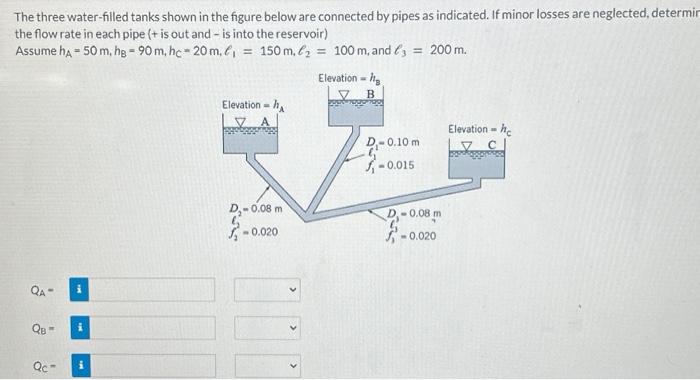

The three water-filled tanks shown in the figure below are connected by pipes as indicated. If minor losses are neglected, determir the flow rate in each pipe ( + is out and - is into the reservoir) Assume

h_{A} = 50 m, h_{B} = 90 m, h_{C} ? 20 m, ?_{1} = 150 m, ?_{2} = 100 m

, and

?_{3} = 200 m

.
