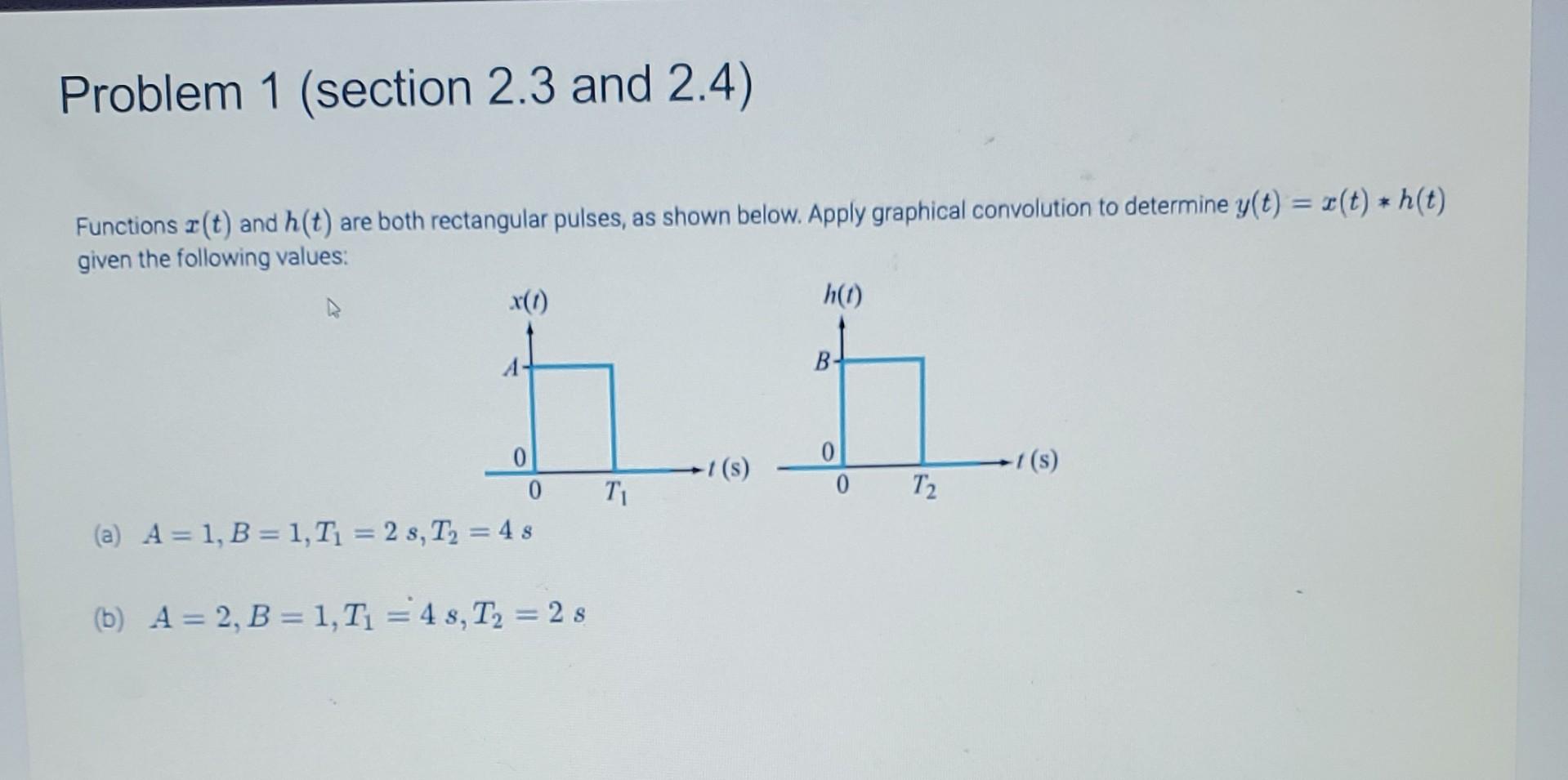

Functions $x (t)$ and $h (t)$ are both rectangular pulses, as shown below. Apply graphical convolution to determine $y (t) = x (t) ? h (t)$ given the following values: (a) $A = 1, B = 1, T_{1} = 2 s, T_{2} = 4 s$ (b) $A = 2, B = 1, T_{1} = 4 s, T_{2} = 2 s$

Question

student submitted image, transcription available below

signals and systems
Thank you

Functions

x (t)

and

h (t)

are both rectangular pulses, as shown below. Apply graphical convolution to determine

y (t) = x (t) ? h (t)

given the following values: (a)

A = 1, B = 1, T_{1} = 2 s, T_{2} = 4 s

(b)

A = 2, B = 1, T_{1} = 4 s, T_{2} = 2 s
