(Solved): SOLIDWORKS CAD Design Associate (CSWA) Question 4 of 14 For 15 points: B41101: Basic Part - Step 1 - ...

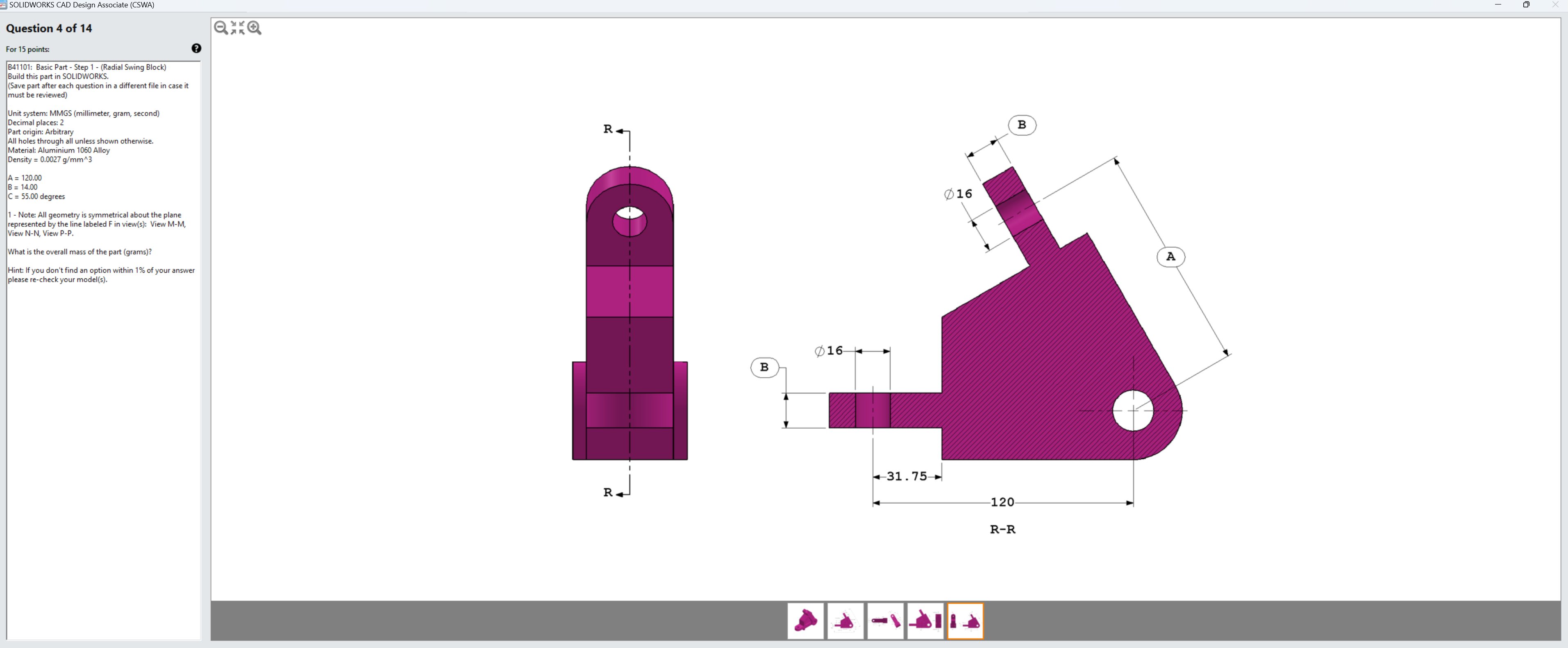

SOLIDWORKS CAD Design Associate (CSWA)
Question 4 of 14
For 15 points:
B41101: Basic Part - Step 1 - (Radial Swing Block)
Build this part in SOLIDWORKS.
(Save part after each question in a different file in case it must be reviewed)
Unit system: MMGS (millimeter, gram, second)
Decimal places: 2
Part origin: Arbitrary
All holes through all unless shown otherwise.
Material: Aluminium 1060 Alloy
Density =0.0027(g)/(m)m^(3)
A=120.00
B=14.00
C=55.00 degrees

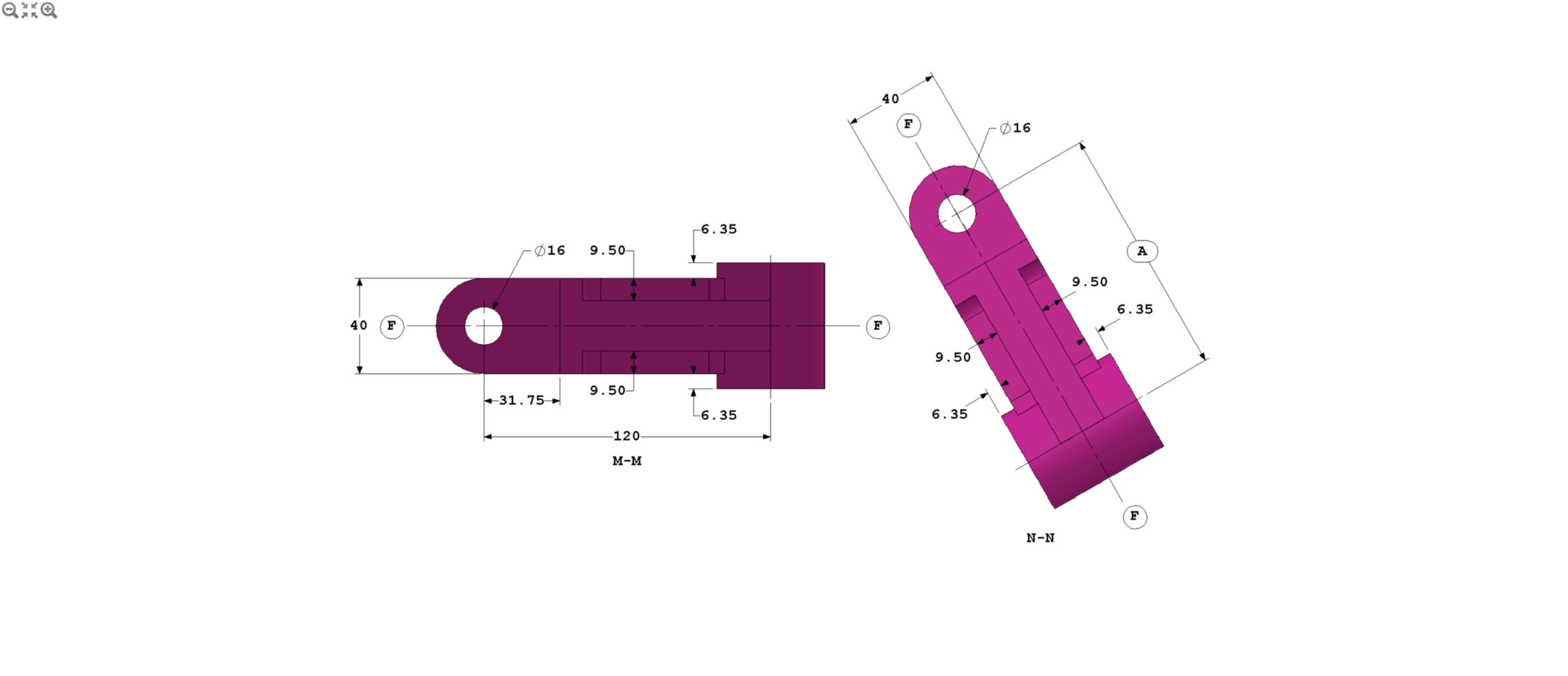

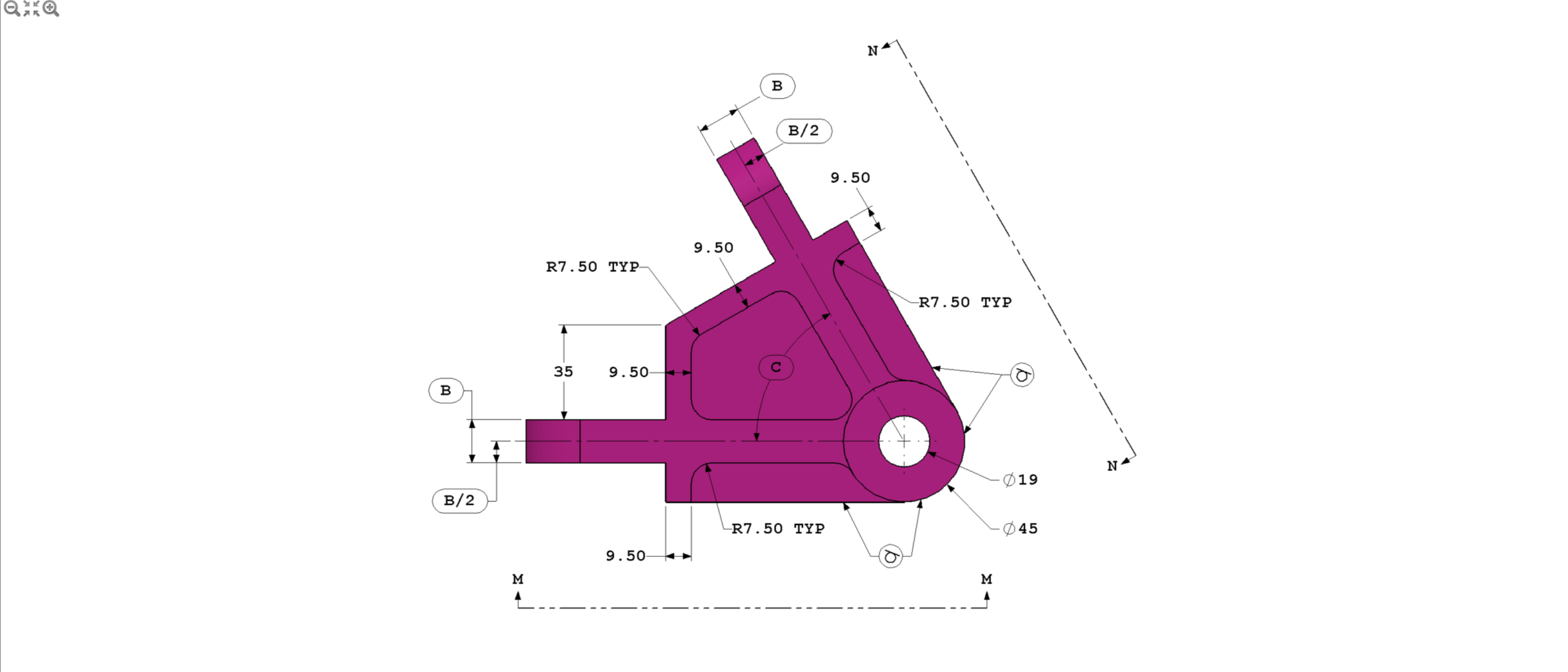

1 - Note: All geometry is symmetrical about the plane represented by the line labeled Fin view(s): View M-M, View N-N, View P-P.
What is the overall mass of the part (grams)?
Hint: If you don't find an option within 1% of your answer please re-check your model(s).
& -1|-1|+1|
?
578.14
849.07
1478.32
327.65
8.3.4.2136
Show Summary
22:58
-157:02
SOLIDWORKS CAD Design Associate (CSWA)
M
M

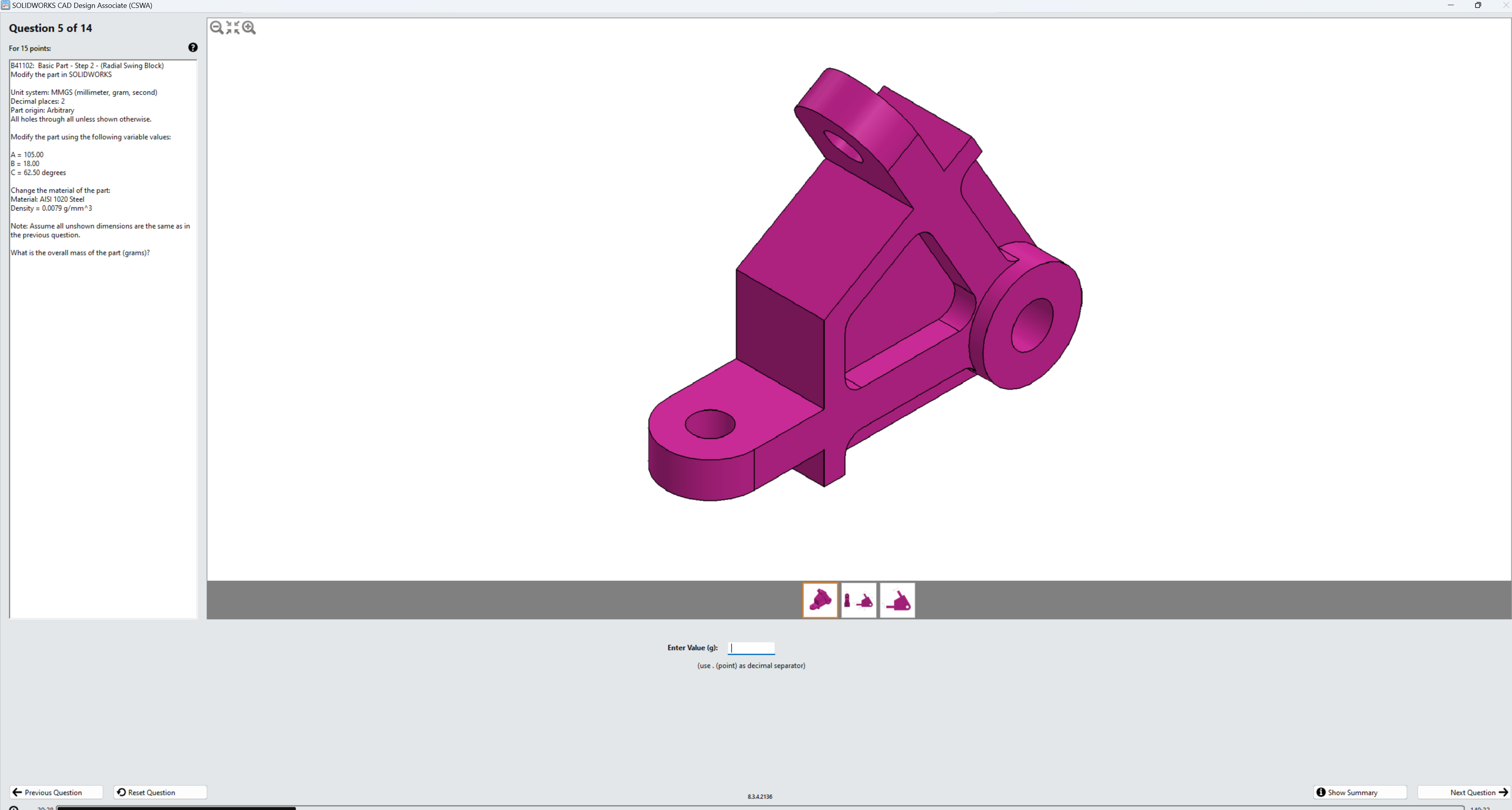

PLEASE SOMEONE DO THIS. FIRST 4 QUESTIONS ARE JUST QUESTIONS FOR FIRST PART. LAST PICTURE IS THE SECOND PART WHICH IS NOT MUTTIPLE CHOISE I HAVE TO ENTER THE MASS.
Enter Value (g) q,
(use . (point) as decimal separator)
larr->
