Some physical systems processing capacitance continuously distributed over space can be modeled as an infinite array of discrete circuit elements. Examples are a microwave waveguide and the axon of a nerve cell. To practice analysis of an infinite array, determine the equivalent capacitance C between terminals X and Y of the infinite set of capacit solutionspile.com

Question

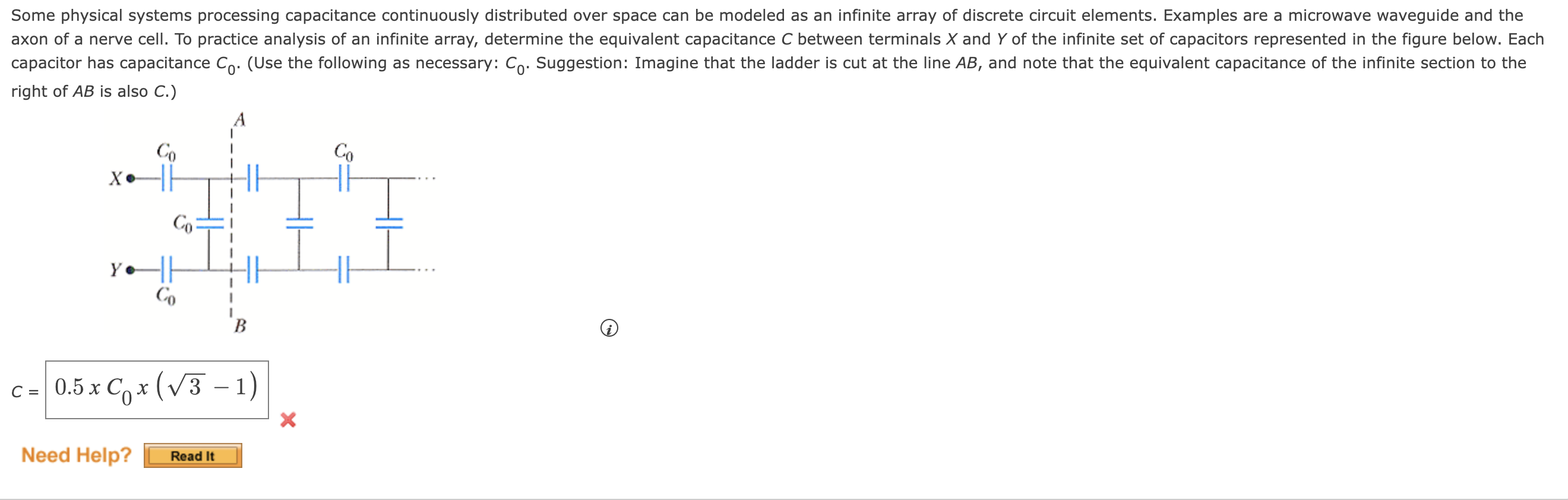

Some physical systems processing capacitance continuously distributed over space can be modeled as an infinite array of discrete circuit elements. Examples are a microwave waveguide and the axon of a nerve cell. To practice analysis of an infinite array, determine the equivalent capacitance C between terminals X and Y of the infinite set of capacitors represented in the figure below. Each capacitor has capacitance C₀. (Use the following as necessary: C₀. Suggestion: Imagine that the ladder is cut at the line AB, and note that the equivalent capacitance of the infinite section to the right of AB is also C.)

$right of $ A B $ is also $ C $.)$
