(Solved): StaticsI need the angle for each of the forces in the free body diagram Required information NOTE: T ...

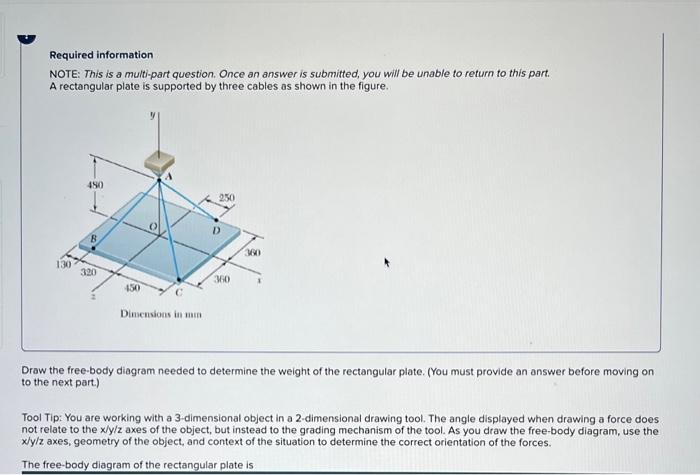

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. A rectangular plate is supported by three cables as shown in the figure. Draw the free-body diagram needed to determine the weight of the rectangular plate. (You must provide an answer before moving on to the next part.) Tool Tip: You are working with a 3-dimensional object in a 2-dimensional drawing tool. The angle displayed when drawing a force does not relate to the $$x/y/z$$ axes of the object, but instead to the grading mechanism of the tool. As you draw the free-body diagram, use the $$x/y/z$$ axes, geometry of the object, and context of the situation to determine the correct orientation of the forces. The free-body diagram of the rectangular plate is Force $$x$$ - Indicates required flelds Name of Force $${}^{?}$$ Force $$\left(T_{BA}\right)$$ Name of Point " Dimensions in $$\mathrm{mm}$$
