(Solved): submarine and a downward resistive force of 1030 N . (a) Draw the free-body diagram showing the for ...
submarine and a downward resistive force of 1030 N . (a) Draw the free-body diagram showing the forces that act on the submarine. (b) What is the submarine's acceleration? Step 1

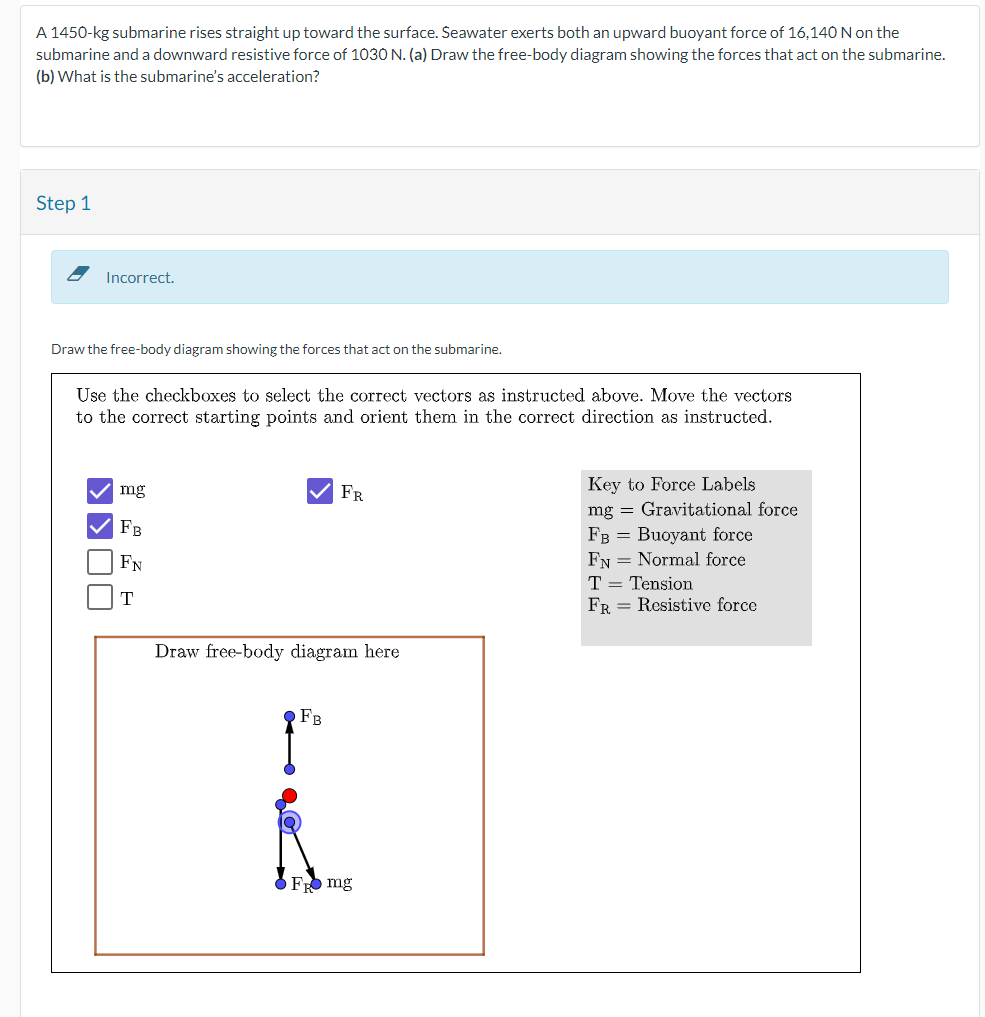

?Incorrect. Draw the free-body diagram showing the forces that act on the submarine. Use the checkboxes to select the correct vectors as instructed above. Move the vectors to the correct starting points and orient them in the correct direction as instructed. mg
F_(B)
F_(N)T Key to Force Labels
mg=Gravitational force
F_(B)=Buoyant force
F_(N)=Normal force
T=Tension
F_(R)=Resistive force
