(Solved): \table[[,UNSPECIFIED TOLERANCESI 2-PL DEC IN (x,x\times )+-01 3-PL DEC IN.(x.xxx). 003 DRILLED HO ...

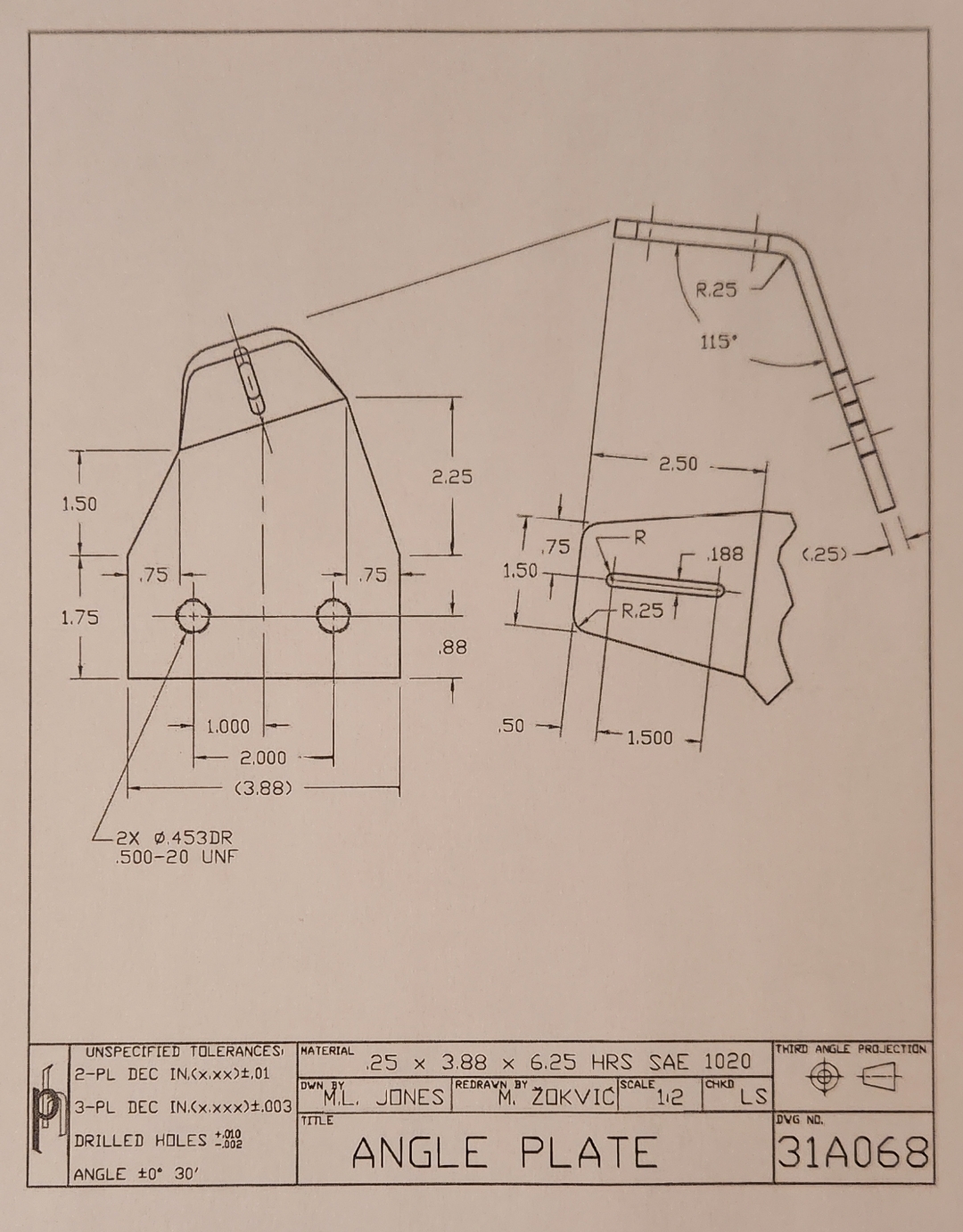

\table[[,UNSPECIFIED TOLERANCESI 2-PL DEC IN

(x,x\times )+-01

3-PL DEC IN.(x.xxx)?. 003 DRILLED HOLES

_(-.002)^(+0.00)

ANGLE

+-0\deg 30^(')

,MATERIAL

25\times 3.88\times 6.25

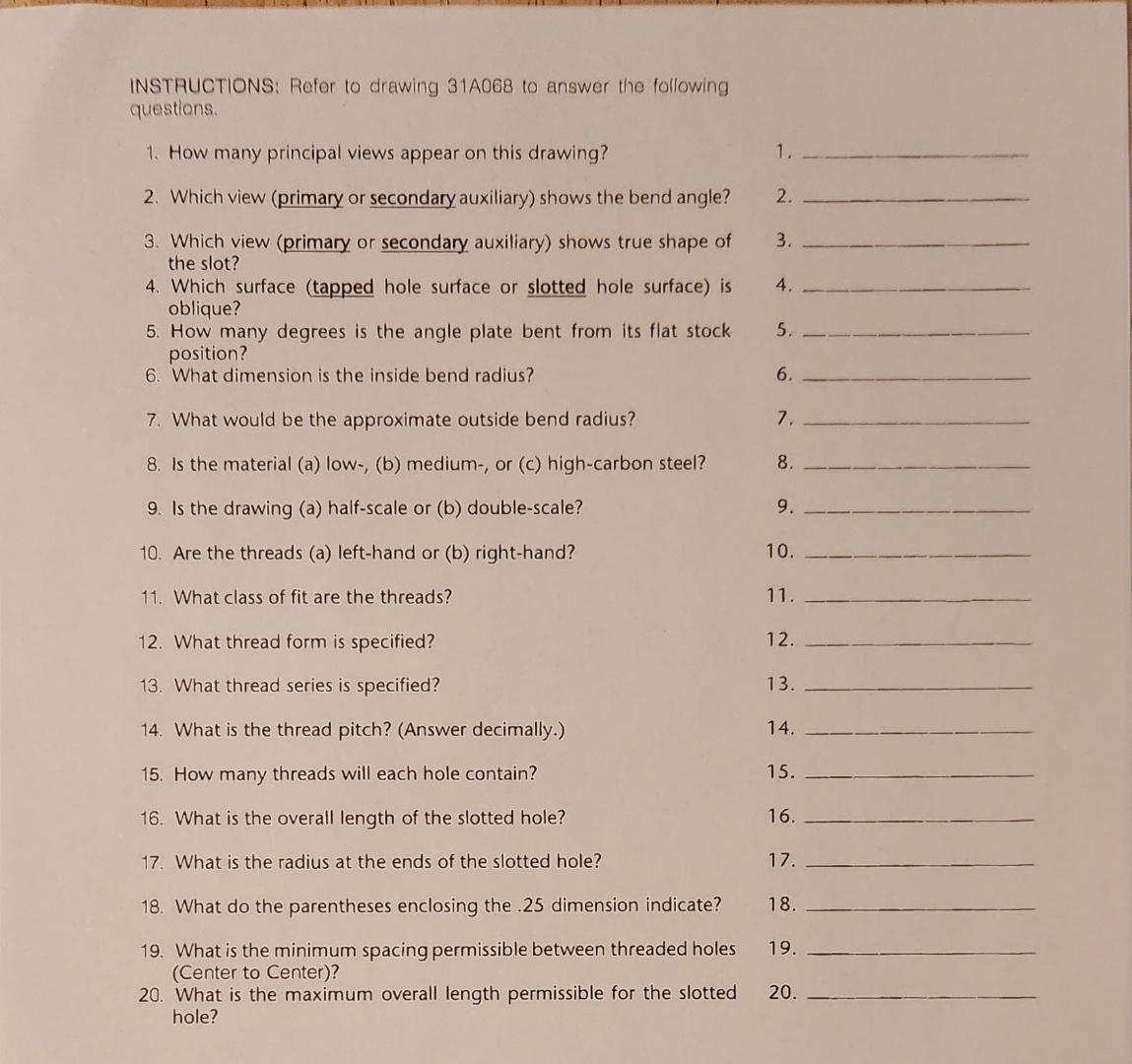

HRS SAE 1020,THIRD ANGLE PROJECTION],[TIRE,,,,,,,],[,,,,,,,DVG NO. 31 A068]] INSTRUCTIONS: Refor to drawing 31A068 to answer the following questions. How many principal views appear on this drawing? Which view (primary or secondary auxiliary) shows the bend angle? Which view (primary or secondary auxiliary) shows true shape of the slot? Which surface (tapped hole surface or slotted hole surface) is oblique? How many degrees is the angle plate bent from its flat stock position? What dimension is the inside bend radius? What would be the approximate outside bend radius? Is the material (a) low-, (b) medium-, or (c) high-carbon steel? Is the drawing (a) half-scale or (b) double-scale? Are the threads (a) left-hand or (b) right-hand? What class of fit are the threads? What thread form is specified? What thread series is specified? What is the thread pitch? (Answer decimally.) How many threads will each hole contain? What is the overall length of the slotted hole? What is the radius at the ends of the slotted hole? What do the parentheses enclosing the .25 dimension indicate? What is the minimum spacing permissible between threaded holes (Center to Center)? What is the maximum overall length permissible for the slotted hole?

?

?

?

?

?

?

?

?

?

?

?

?

?

?

?

?

?

?

?
