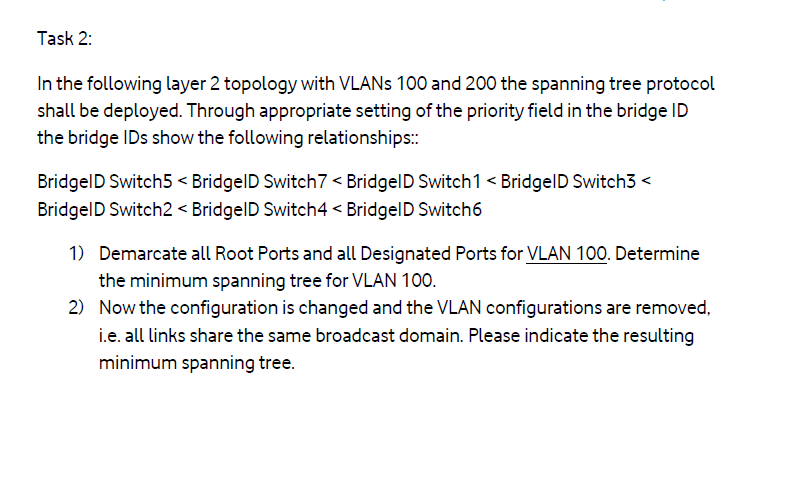

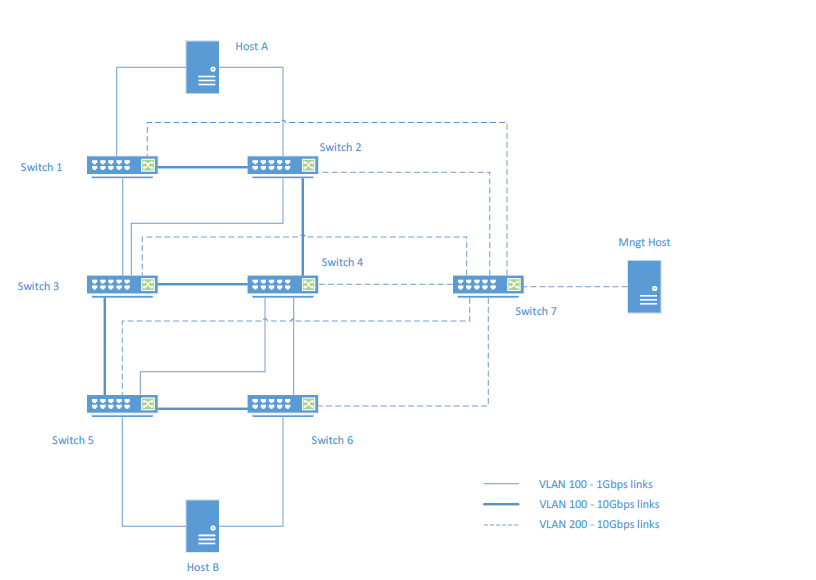

Task 2: In the following layer 2 topology with VLANs 100 and 200 the spanning tree protocol shall be deployed. Through appropriate setting of the priority field in the bridge ID the bridge IDs show the following relationships:: BridgelD Switch5 < BridgelD Switch 7 < BridgelD Switch $1<$ BridgelD Switch $3<$ BridgelD Switch $2<$ BridgelD Switch $4<$ BridgelD Switch 6 1) Demarcate all Root Ports and all Designated Ports for VLAN 100. Determine the minimum spanning tree for VLAN 100. 2) Now the configuration is changed and the VLAN configurations are removed, i.e. all links share the same broadcast domain. Please indicate the resulting minimum spanning tree.
