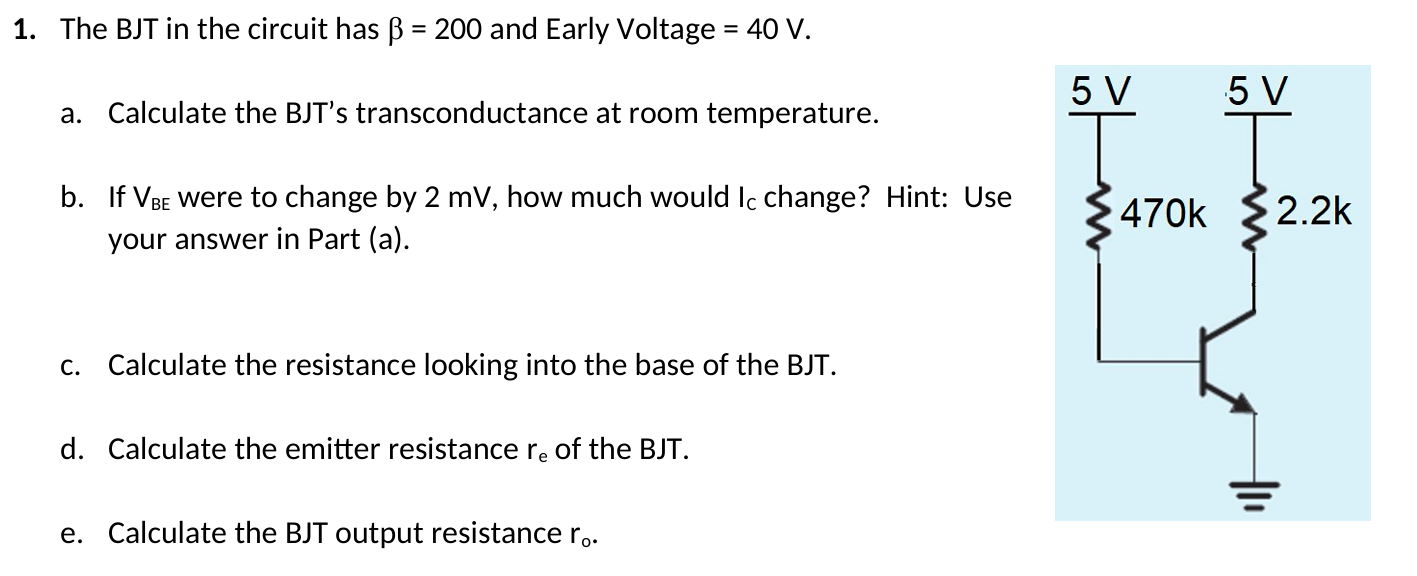

The BJT in the circuit has \beta =200 and Early Voltage =40V.
a. Calculate the BJT's transconductance at room temperature.
b. If V_(BE) were to change by 2 mV , how much would I_(C) change? Hint: Use
your answer in Part (a).
c. Calculate the resistance looking into the base of the BJT.
d. Calculate the emitter resistance r_(e) of the BJT.
e. Calculate the BJT output resistance r_(0).
