(Solved): The circuit in the figure below has been connected for several seconds. (Let V1=4.90V and V2 ...

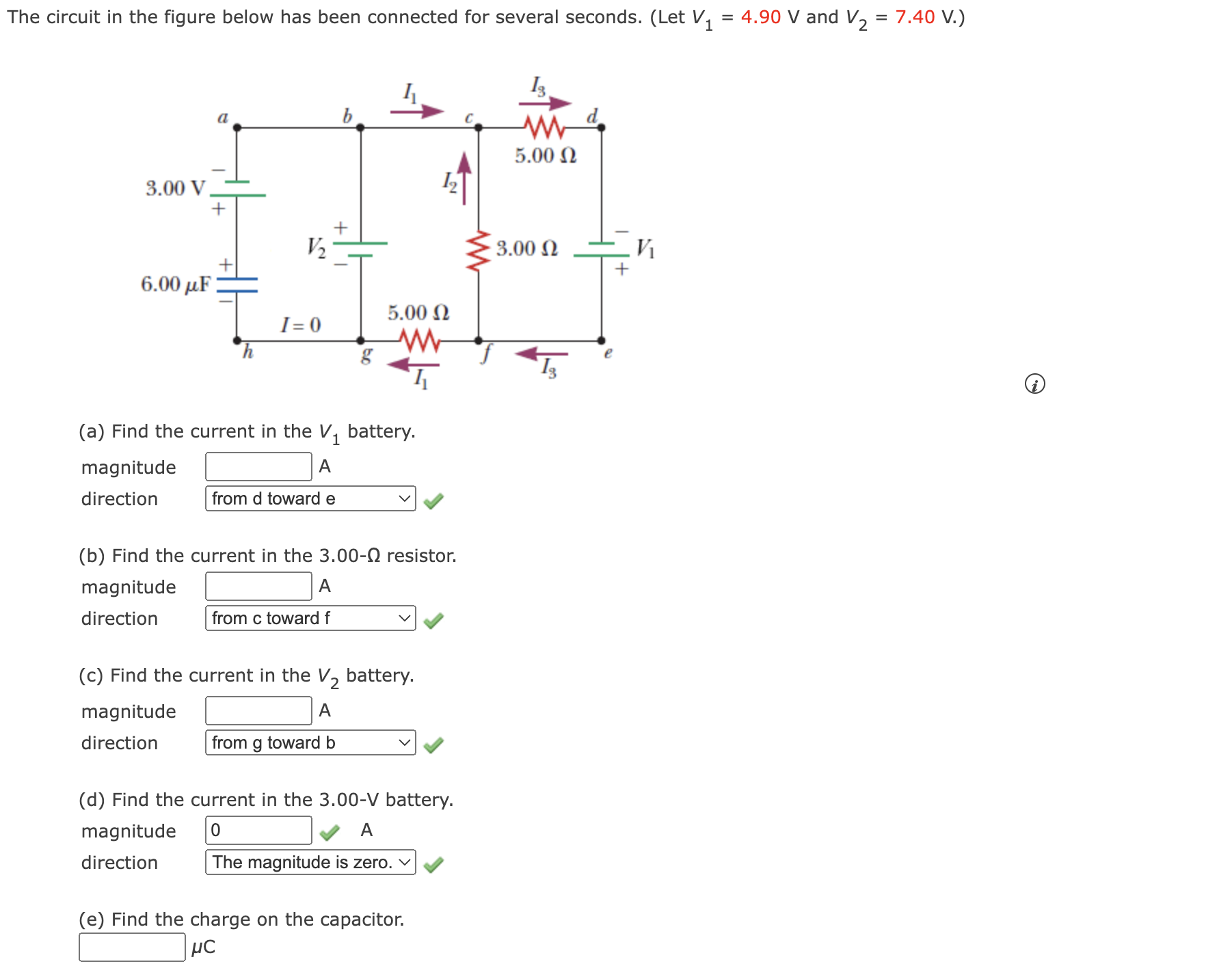

The circuit in the figure below has been connected for several seconds. (Let $V_1=4.90\mathrm{V}$ and $V_2=7.40\mathrm{V}$.) (i) (a) Find the current in the $V_1$ battery. magnitude A direction (b) Find the current in the $3.00??$ resistor. magnitude A direction (c) Find the current in the $V_2$ battery. magnitude A direction (d) Find the current in the $3.00?\mathrm{V}$ battery. magnitude $A$ direction (e) Find the charge on the capacitor. $?\mathrm{C}$
