(Solved): The diagram below represents a 4\times 4 NAND-based ROM array. Write the corresponding bit lines out ...
The diagram below represents a

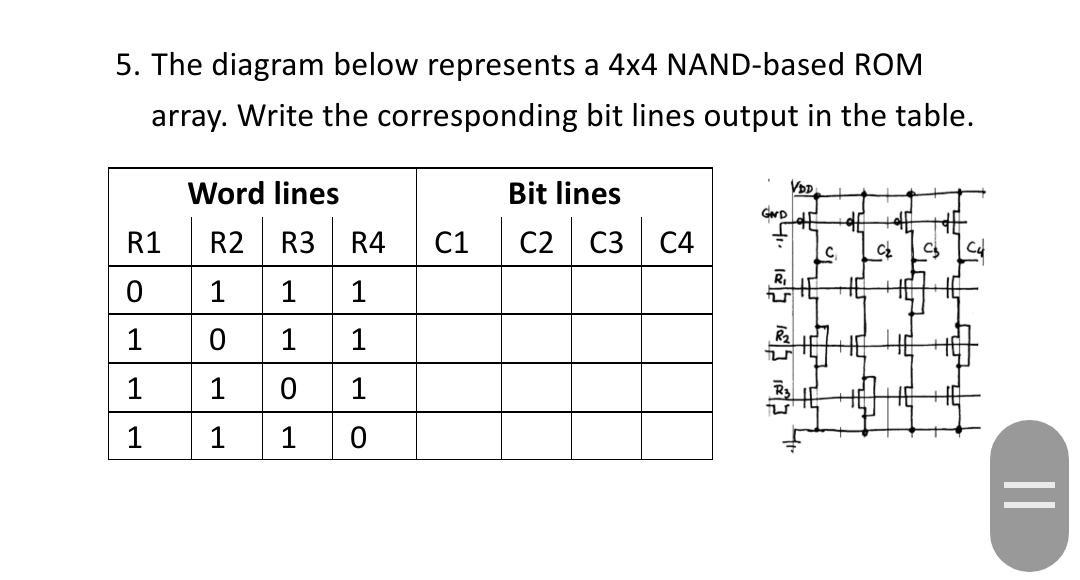

4\times 4NAND-based ROM array. Write the corresponding bit lines output in the table. \table[[Word lines,Bit lines],[R1,R2,R3,R4,C1,C2,C3,C4],[0,1,1,1,,,,],[1,0,1,1,,,,],[1,1,0,1,,,,],[1,1,1,0,,,,]]
