Question

The figure illustrates the nonpermanent connection of a steel cylinder head to a grade 30 cast-iron pressure vessel using

N

bolts. A confined gasket seal has an effective sealing diameter

D

. The cylinder stores gas at a maximum pressure

p g

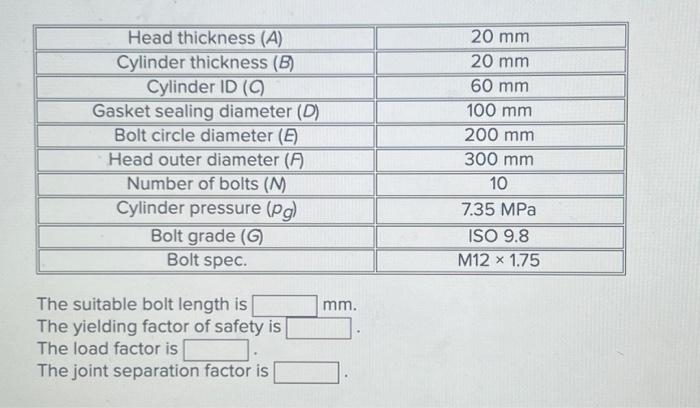

. For the

5 p ec i f i c a t i o n s

given in the table for the specific problem assigned, select a suitable bolt length, ossuming bolts are avallable in increments of 5

mm

. Then determine the yielding factor of safety

n_{p}

, the load factor

n_{L}

, and the joint separation factor

n_{0}

. Take the value of

E

for steel as

207 GPa

and for cast iron as

100 GPa

. The suitable bolt length is The yielding factor of safety is The load factor is The joint separation factor is
