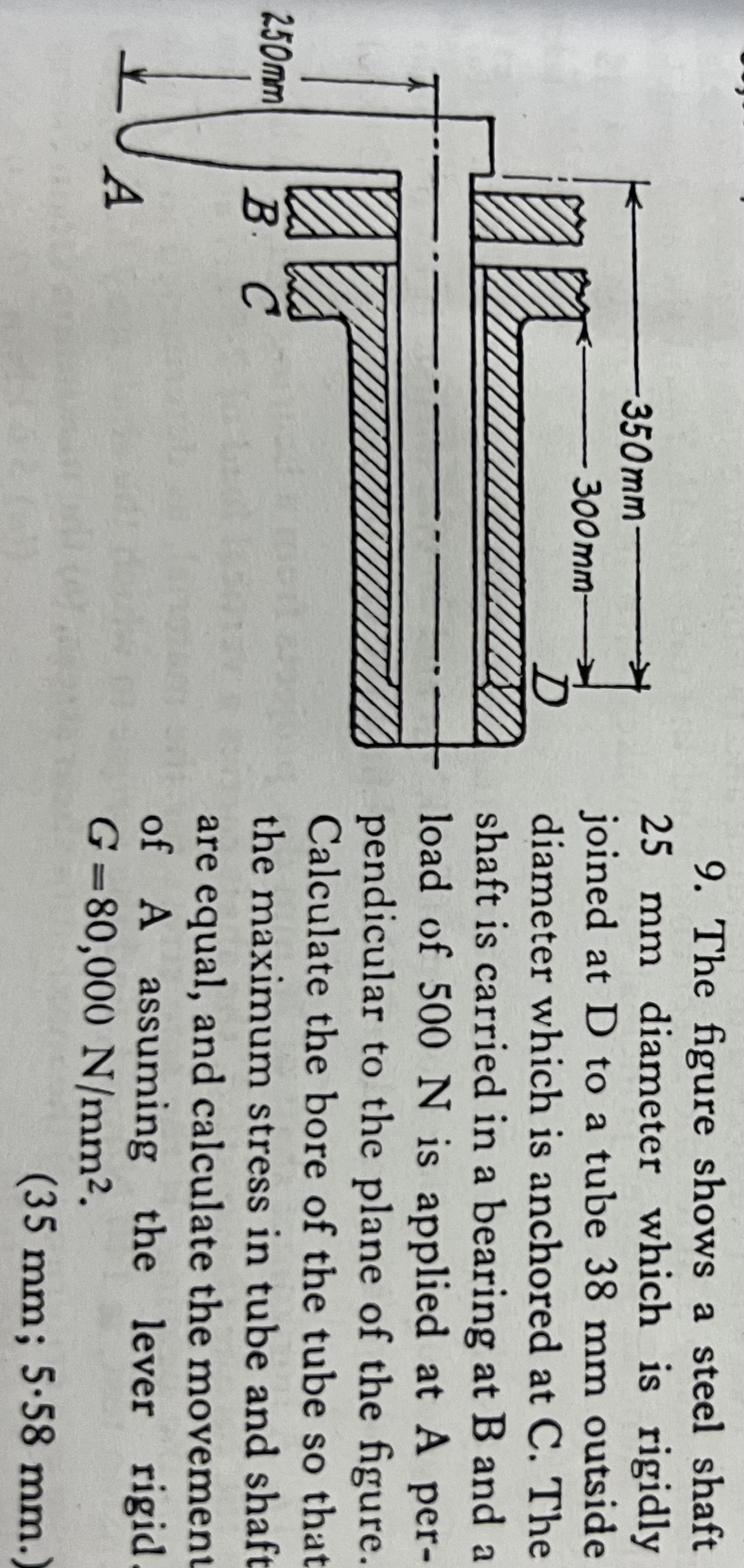

The figure shows a steel shaft
25mmdiameter which is rigidly joined at
Dto a tube
38mmoutside diameter which is anchored at
C. The shaft is carried in a bearing at B and a load of
500Nis applied at A perpendicular to the plane of the figure. Calculate the bore of the tube so that the maximum stress in tube and shaft are equal, and calculate the movement of A assuming the lever rigid
G=80,000(N)/(m)m^(2). .
