The flow past three bluff bodies at a particular Reynolds number has been depicted in Fig. 3. Square Cylinder (SC) Triangular Cylinder (TC) Fig. 3: For Q3 (a) Arrange the above shapes (SC, TC and CC) in the increasing order of bluffness, (b) Comment (increasing/decreasing/no change of bluff bodies shown above with increasing bluffness) on the magn solutionspile.com

Question

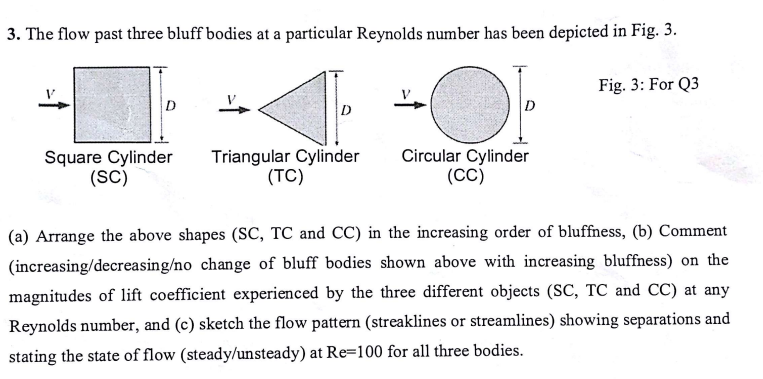

The flow past three bluff bodies at a particular Reynolds number has been depicted in Fig. 3. Square Cylinder (SC) Triangular Cylinder (TC) Fig. 3: For Q3 (a) Arrange the above shapes (SC, TC and CC) in the increasing order of bluffness, (b) Comment (increasing/decreasing/no change of bluff bodies shown above with increasing bluffness) on the magnitudes of lift coefficient experienced by the three different objects (SC, TC and CC) at any Reynolds number, and (c) sketch the flow pattern (streaklines or streamlines) showing separations and stating the state of flow (steady/unsteady) at

Re=100

for all three bodies.
