(Solved): The following switches have the given MAC addresses and are connected as shown in the diagram. There ...

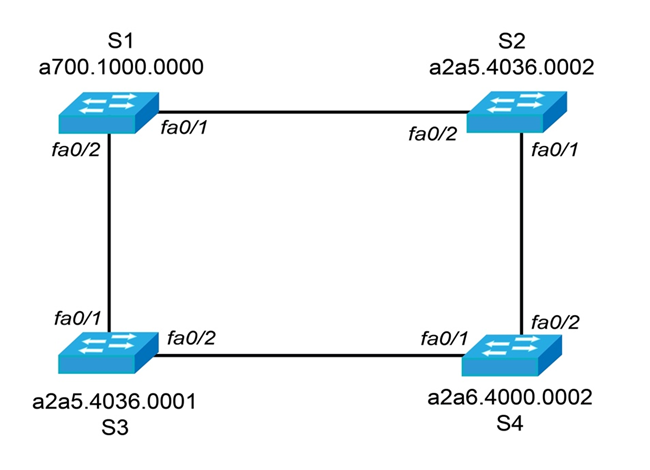

- The following switches have the given MAC addresses and are connected as shown in the diagram. There is only VLAN 1 on all switches and all switches have the same priority.
Write out the final Spanning Tree state (Root, Designated or Blocked) for each of the eight switch ports shown in the diagram:
S1 fa0/1:
................................................................................................................................................................
................................................................................................................................................................
S1 fa0/2:
................................................................................................................................................................
................................................................................................................................................................
S2 fa0/1:
................................................................................................................................................................
................................................................................................................................................................
S2 fa0/2:
................................................................................................................................................................
................................................................................................................................................................
S3 fa0/1:
................................................................................................................................................................
................................................................................................................................................................
S3 fa0/2:
................................................................................................................................................................
................................................................................................................................................................
S4 fa0/1:
................................................................................................................................................................
................................................................................................................................................................
S4 fa0/2:
................................................................................................................................................................
................................................................................................................................................................
