(Solved): The general linkage configuration and terminology for a geared fivebar linkage are shown in Figure ...

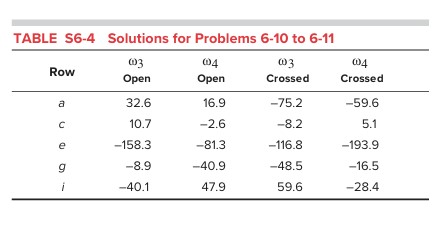

The general linkage configuration and terminology for a geared fivebar linkage are shown in Figure P6-4. The link lengths, gear ratio (\lambda ), phase angle (\phi ), and the values of \theta 2 and \omega 2 are defined in Table P6-4. For the row(s) assigned, draw the linkage to scale and find \omega 3 and \omega 4 using a graphical method. Use graphical vector polygon, open configuration only. Please only do ROW C. TABLE P6-4 Data for Problems 6-10 to 6-11 FIGURE P6-4 TABLE S6-4 Solutions for Problems 6-10 to 6-11 \table[[Row,\table[[\omega _(3)],[Open]],\table[[\omega _(4)],[Open]],\table[[\omega _(3)],[Crossed]],\table[[\omega _(4)],[Crossed]]],[32.6,16.9,-75.2,-59.6],[c,10.7,-2.6,-8.2,5.1],[e,-158.3,-81.3,-116.8,-193.9],[g,-8.9,-40.9,-48.5,-16.5],[i,-40.1,47.9,59.6,-28.4]]
