(Solved): The mathematical model for the circuitry is given with the set of equations. AeC1+BeC1+CeC2 ...

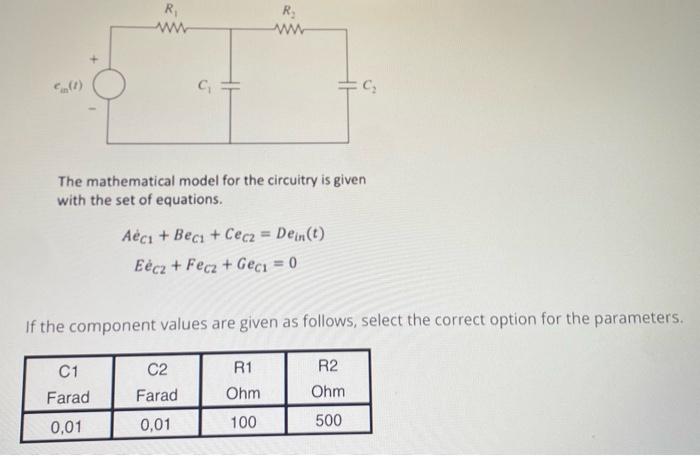

The mathematical model for the circuitry is given with the set of equations. \[ \begin{array}{c} A \dot{e}_{C 1}+B e_{C 1}+C

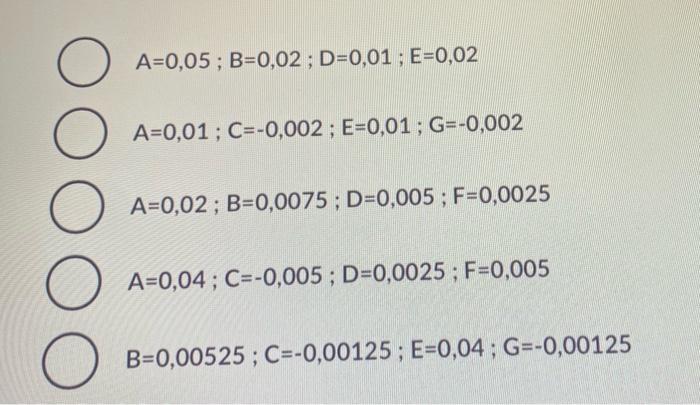

\( \begin{array}{l}A=0,05 ; B=0,02 ; D=0,01 ; E=0,02 \\ A=0,01 ; C=-0,002 ; E=0,01 ; G=-0,002 \\ A=0,02 ; B=0,0075 ; D=0,005
The mathematical model for the circuitry is given with the set of equations. If the component values are given as follows, select the correct option for the parameters.


We have an Answer from Expert

View Expert Answer

Expert Answer





Applying KCL to the only node in the circuit using Laplace transform.
