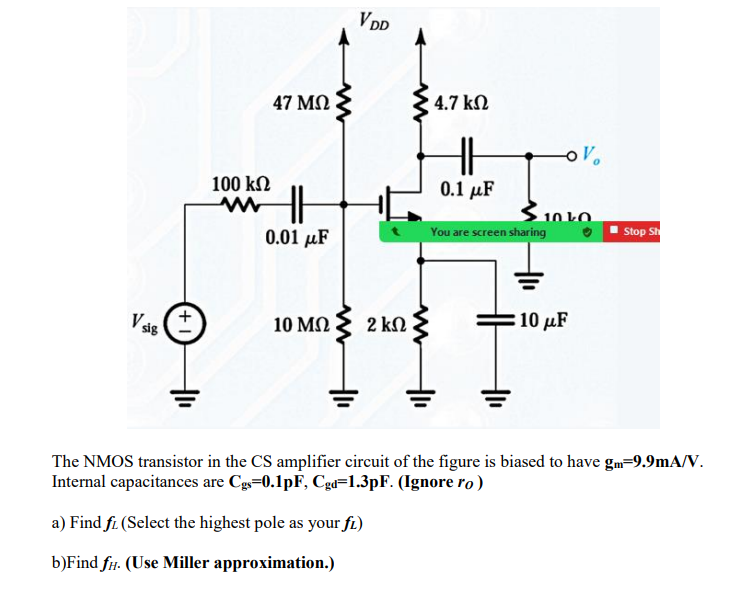

The NMOS transistor in the CS amplifier circuit of the figure is biased to have gm?=9.9mA/V. Internal capacitances are Cgs?=0.1pF,Cgd?=1.3pF. (Ignore rO? ) a) Find fL? (Select the highest pole as your fL? ) b)Find fH?? (Use Miller approximation.) solutionspile.com
