(Solved): The picture below diagrams a cell of an organism with 2n=4 through meiosis. The final daughter cel ...

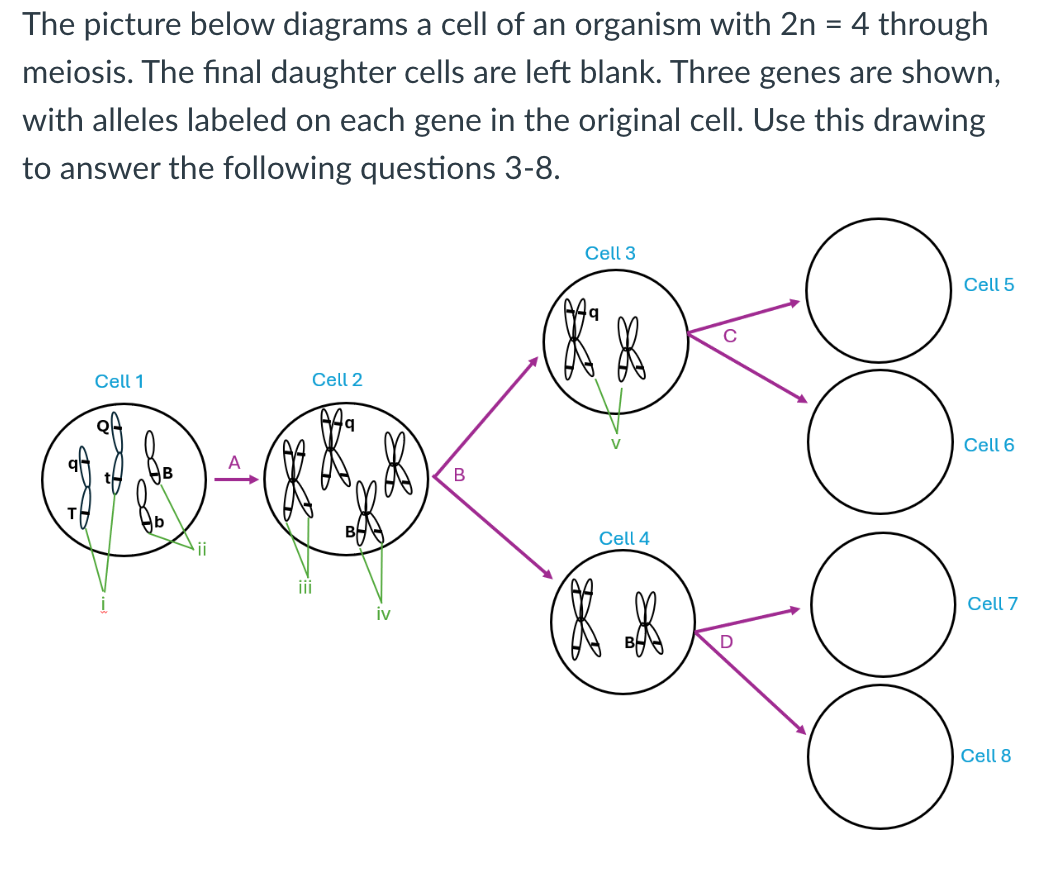

The picture below diagrams a cell of an organism with
