(Solved): The pipeline with an inner diameter of 150mm shown in Figure 4 conducts water from the r ...

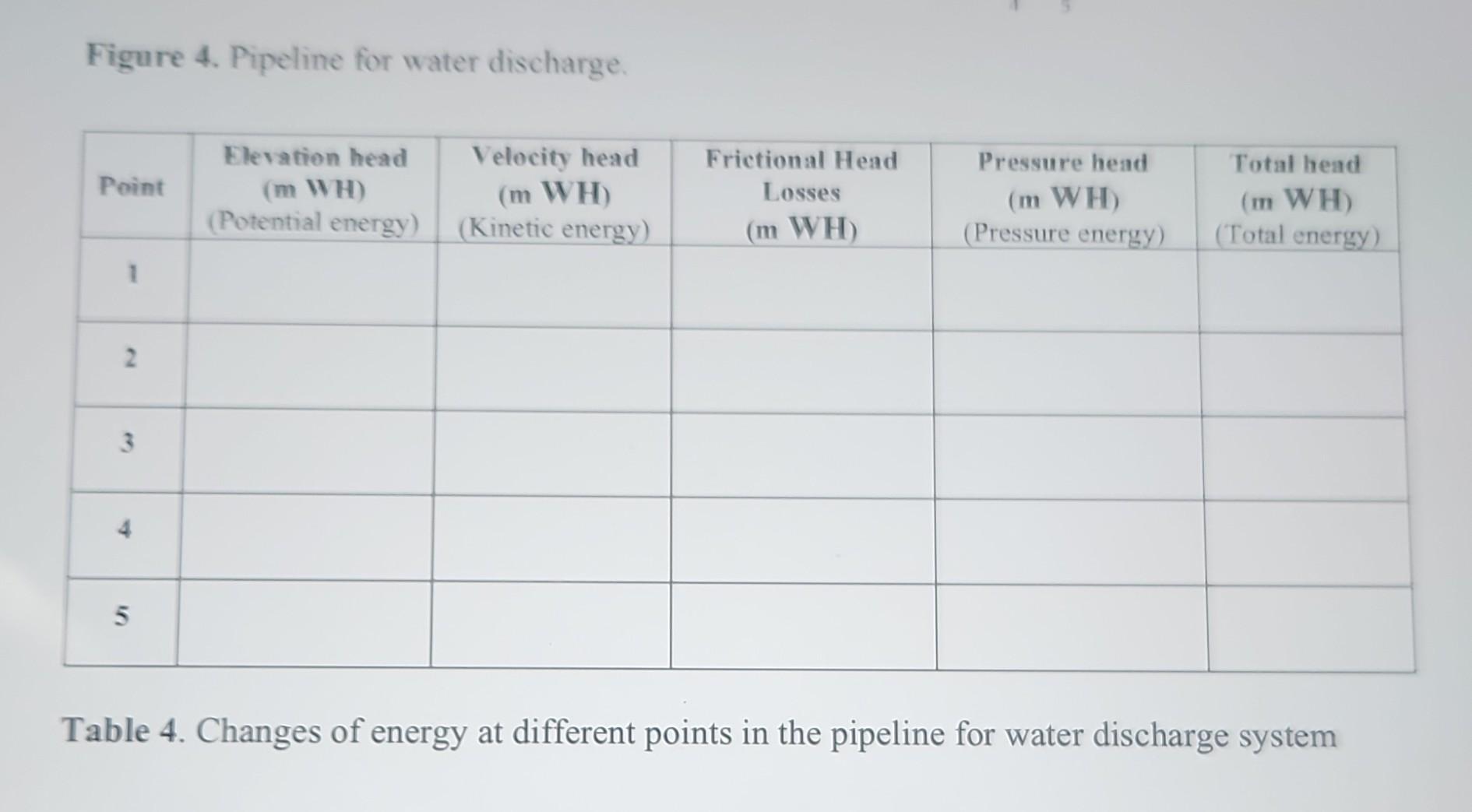

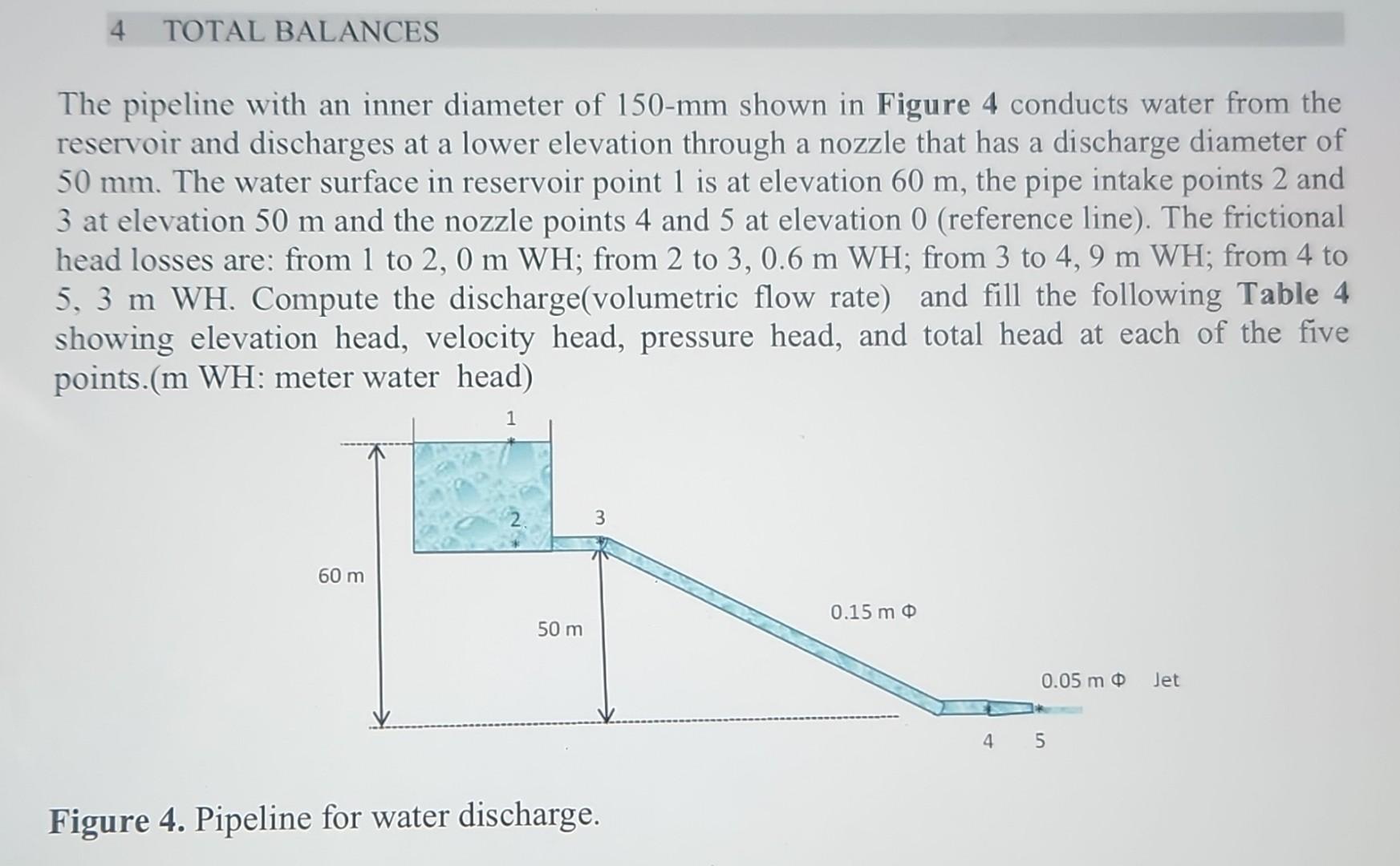

The pipeline with an inner diameter of $150?\mathrm{mm}$ shown in Figure 4 conducts water from the reservoir and discharges at a lower elevation through a nozzle that has a discharge diameter of $50\mathrm{mm}$. The water surface in reservoir point 1 is at elevation $60\mathrm{m}$, the pipe intake points 2 and 3 at elevation $50\mathrm{m}$ and the nozzle points 4 and 5 at elevation 0 (reference line). The frictional head losses are: from 1 to 2, $0\mathrm{m}\mathrm{WH}$; from 2 to 3, $0.6\mathrm{m}\mathrm{WH}$; from 3 to 4, $9\mathrm{m}\mathrm{WH}$; from 4 to $5,3\mathrm{m}\mathrm{WH}$. Compute the discharge(volumetric flow rate) and fill the following Table 4 showing elevation head, velocity head, pressure head, and total head at each of the five points.(m WH: meter water head) Figure 4. Pipeline for water discharge. Figure 4. Pipeline for water discharge. Table 4. Changes of energy at different points in the pipeline for water discharge system
