(Solved): The snap circuit diagram for the Figure 21 circuit is given below (Figure 22). Confirm Kirchhoff's ...

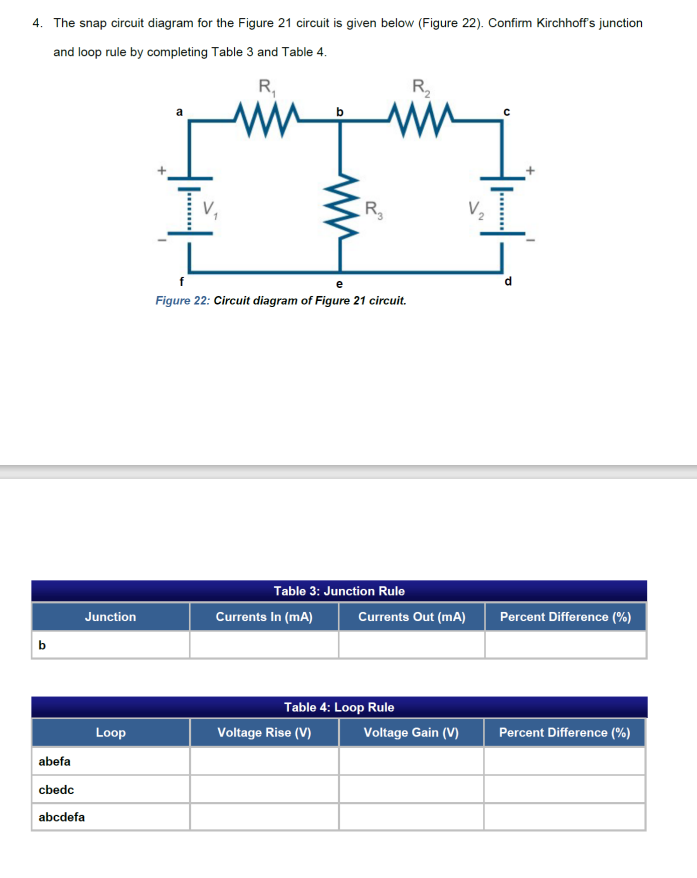

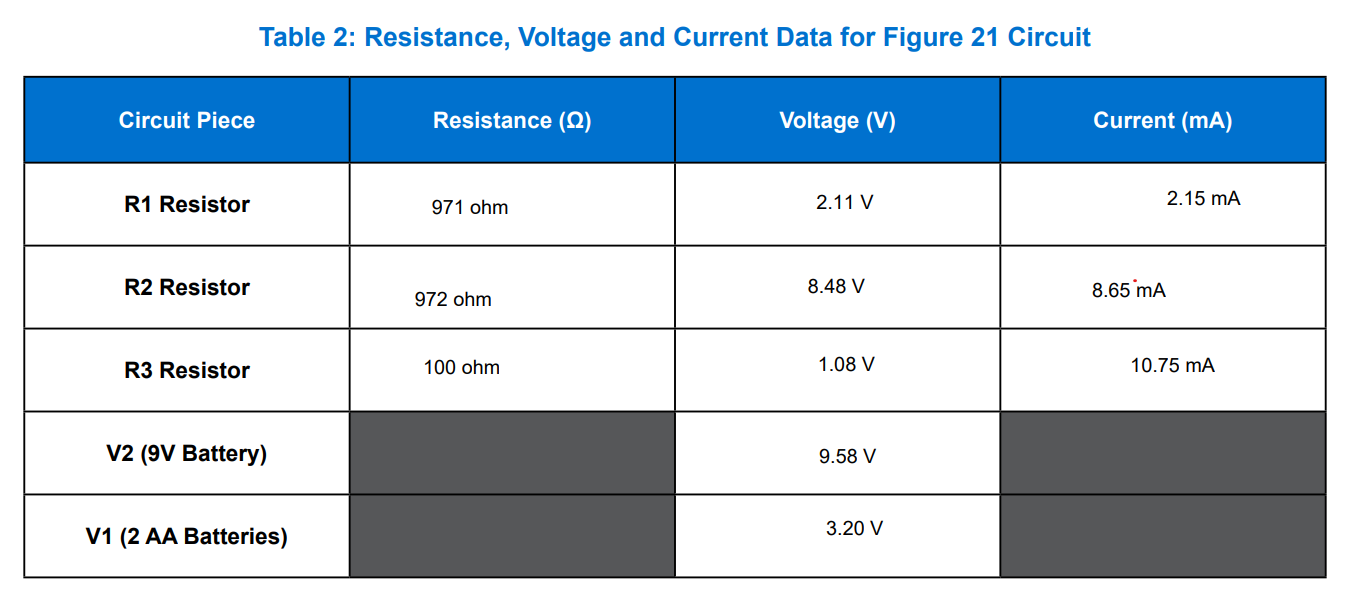

The snap circuit diagram for the Figure 21 circuit is given below (Figure 22). Confirm Kirchhoff's junction and loop rule by completing Table 3 and Table 4. Please, Im stuck with this exercise. Need help. Data below (table 2) to answer the empty table. Thanks so much.
