(Solved): The triangular plate, having a 90\deg angle at A, supports the load P=220lb as shown in (Eigure 1 ) ...

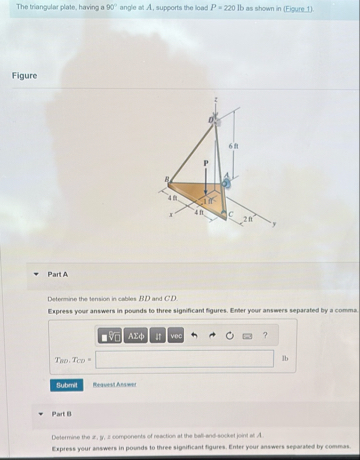

The triangular plate, having a

90\deg

angle at

A

, supports the load

P=220lb

as shown in (Eigure 1 ). Figure Part A Determine the tension in cables

BD

and

CD

. Express your answers in pounds to three significant Bgures. Enfer your answers separated by a comma

?

?

Bravertheawt Part 8 Delermine the

x,y,2

componends of reaction at the bell and socket joint el

A

Express your answers in pounds to three significant figures. Enter your answers separabed by commas Can you answer both A and B please?
