(Solved): Thevenin equivalent: consider the circuit in Fig. 2 and assume that the load resistor is the 10 r ...

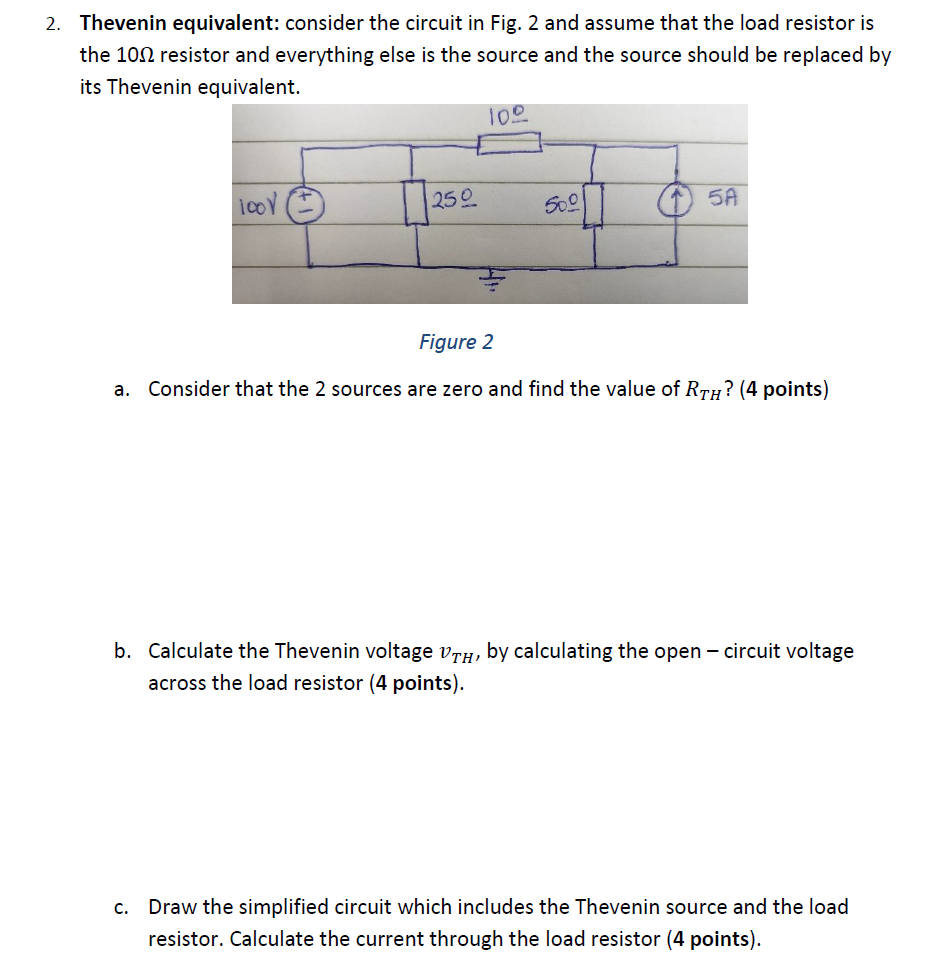

Thevenin equivalent: consider the circuit in Fig. 2 and assume that the load resistor is the $10?$ resistor and everything else is the source and the source should be replaced by its Thevenin equivalent. Figure 2 a. Consider that the 2 sources are zero and find the value of $R_{TH}$ ? (4 points) b. Calculate the Thevenin voltage $v_{TH}$, by calculating the open - circuit voltage across the load resistor (4 points). c. Draw the simplified circuit which includes the Thevenin source and the load resistor. Calculate the current through the load resistor (4 points).
