(Solved): Topology Part 1: Develop an IP Addressing Scheme a. You are assigned the IPv4 network as shown i ...

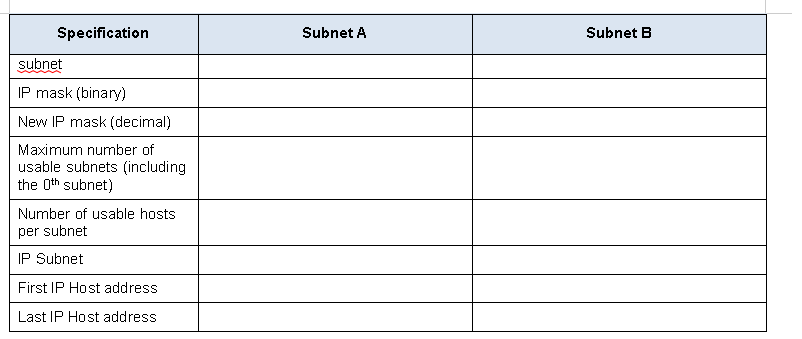

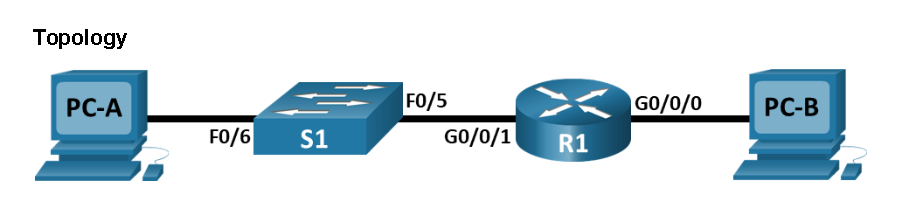

Topology Part 1: Develop an IP Addressing Scheme a. You are assigned the IPv4 network as shown in the table below. You will subnet it to provide IP addresses to two subnets that will support the required number of hosts. No subnet calculators may be used. All work must be shown using the IP Addressing worksheet below. IP Addressing Worksheet \begin{tabular}{|l|l|l|} \hline \multicolumn{1}{|c|}{ Specification } & \multicolumn{1}{|c|}{ Subnet A } & Subnet B \\ \hline subnet & & \\ \hline IP mask (binary) & & \\ \hline New IP mask (decimal) & & \\ \hline $\begin{array}{l}\text{ Maximum number of }\\ \text{ usable subnets (including }\\ \text{ the }{0}^{\text{th }}\text{ subnet) }\end{array}$ & & \\ \hline $\begin{array}{l}\text{ Number of usable hosts }\\ \text{ per subnet }\end{array}$ & & \\ \hline IP Subnet & & \\ \hline First IP Host address & & \\ \hline Last IP Host address & & \\ \hline \end{tabular} b. Record your subnet assignment in the table below. 1) Assign the first IPV4 address of each subnet to a router interface (i) subnet $\mathrm{A}$ is hosted on $\mathrm{R}1\mathrm{G}0/0/1$ (ii) subnet $B$ is hosted on $\mathrm{R}1\mathrm{G}/0/0$ 2) Assign the last IPv4 address of each subnet to the PC NIC 3) Assign the second IPV4 address of subnet $\mathrm{A}$ to $S1$ 4) List the maximum number of useable hosts per subnet c. Record the IP address information for each device:
