(Solved): Use a Karnaugh map to simplify and reduce the expression below to minimum sum-of-products form. Sel ...

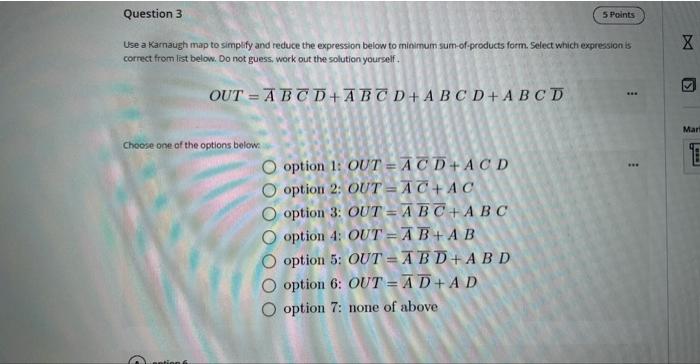

Use a Karnaugh map to simplify and reduce the expression below to minimum sum-of-products form. Select which expression is correct fram list below. Do not guess, work out the solution yourself. \[ O U T=\bar{A} \bar{B} \bar{C} \bar{D}+\bar{A} \bar{B} \bar{C} D+A B C D+A B C \bar{D} \] Choose one of the options below: option 1: OUT \( =\bar{A} \bar{C} \bar{D}+A C D \) option 2: \( O U T=\bar{A} \bar{C}+A C \) option 3: OUT \( =\bar{A} \bar{B} \bar{C}+A B C \) option 4: \( O U T=\bar{A} \bar{B}+A B \) option 5: \( O U T=\bar{A} \bar{B} \bar{D}+A B D \) option \( 6: O U T=\bar{A} \bar{D}+A D \) option 7: none of above
