(Solved): Use Stiffness Matrix Theory of Structures Find all unknown reactions and displacements PROBLEM 2 (2 ...

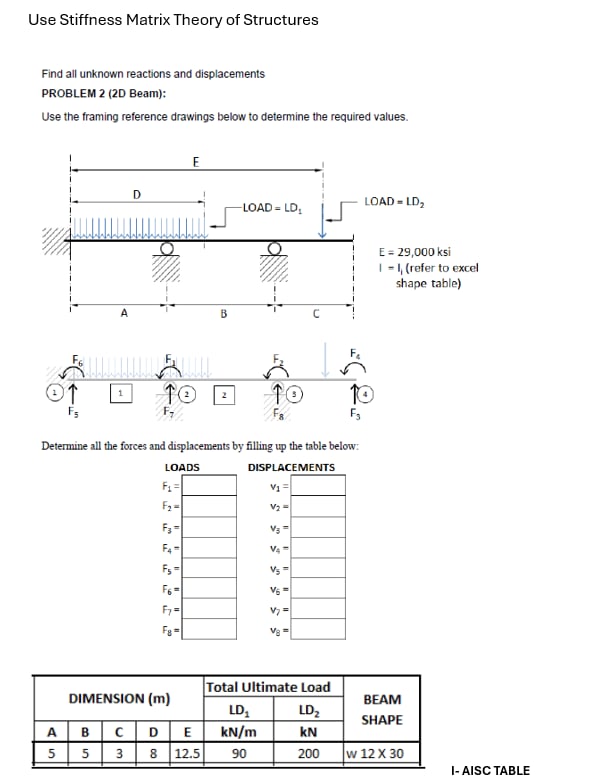

Use Stiffness Matrix Theory of Structures Find all unknown reactions and displacements PROBLEM 2 (2D Beam): Use the framing reference drawings below to determine the required values. Determine all the forces and displacements by filling up the table below: LOADS
F_(1)=
F_(2)=
F_(3)=
F_(4)=
F_(5)=
F_(6)=
F_(7)=
F_(8)=DISPLACEMENTS
v_(1)=
v_(2)=
v_(3)=
v_(4)=
v_(5)=
v_(6)=
v_(7)=
v_(8)=
