(Solved): Use the general voltage divider formula to calculate the values of voltage drop for the following se ...

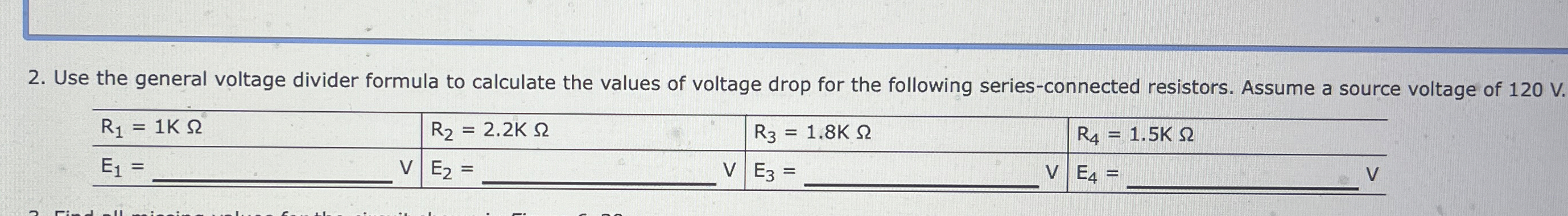

Use the general voltage divider formula to calculate the values of voltage drop for the following series-connected resistors. Assume a source voltage of 120 V . \table[[
R_(1)=1K\Omega ,
R_(2)=2.2K\Omega ,
R_(3)=1.8K\Omega ,
R_(4)=1.5K\Omega
