(Solved): Use the image to determine the answer(s). The flow through a large check valve having a 1m diame ...

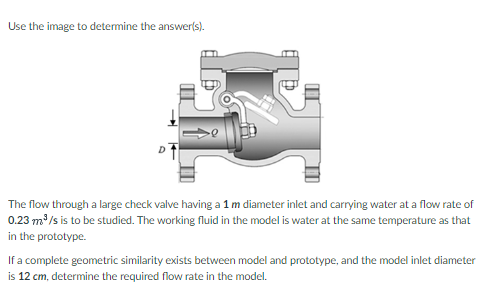

Use the image to determine the answer(s). The flow through a large check valve having a $1\mathrm{m}$ diameter inlet and carrying water at a flow rate of $0.23{\mathrm{m}}^3/\mathrm{s}$ is to be studied. The working fluid in the model is water at the same temperature as that in the prototype. If a complete geometric similarity exists between model and prototype, and the model inlet diameter is $12\mathrm{cm}$, determine the required flow rate in the model.
