(Solved): Use the TTL data sheets available on the class web-site to answer the following questions. What is t ...

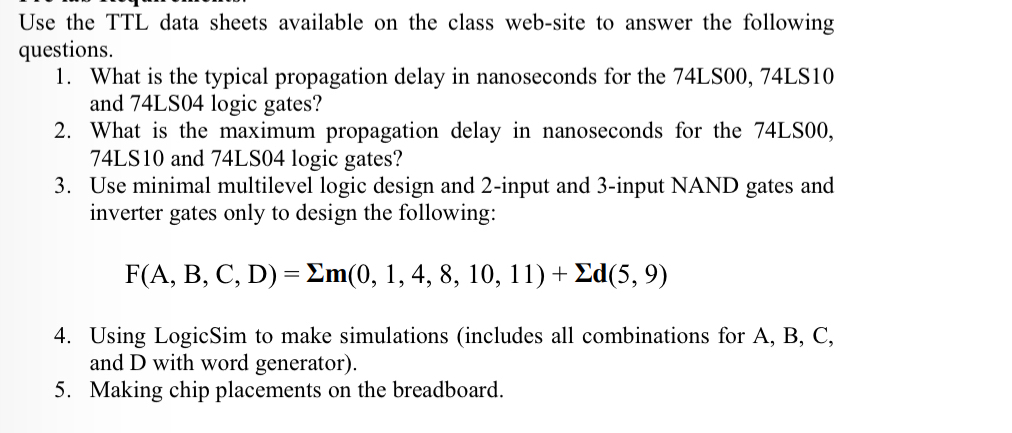

Use the TTL data sheets available on the class web-site to answer the following questions. What is the typical propagation delay in nanoseconds for the 74LS00, 74LS10 and 74LS04 logic gates? What is the maximum propagation delay in nanoseconds for the 74LS00, 74LS10 and 74LS04 logic gates? Use minimal multilevel logic design and 2-input and 3-input NAND gates and inverter gates only to design the following:
F(A,B,C,D)=\Sigma m(0,1,4,8,10,11)+\Sigma d(5,9)Using LogicSim to make simulations (includes all combinations for
A,B,C, and D with word generator). Making chip placements on the breadboard.
