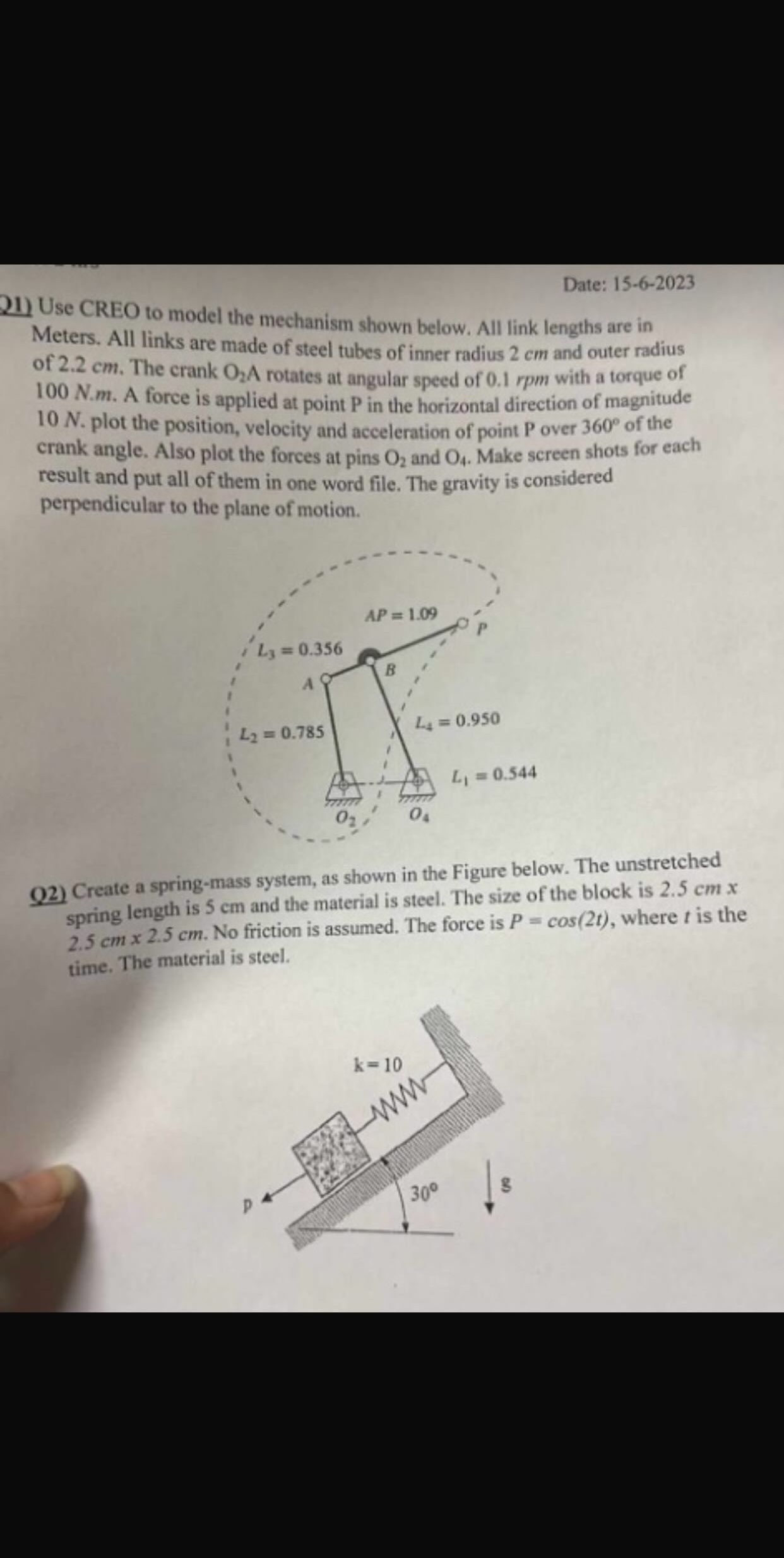

Using creo please Use CREO to model the mechanism shown below. All link lengths are in Meters. All links are made of steel tubes of inner radius 2 cm and outer radius of 2.2 cm . The crank

rotates at angular speed of 0.1 rpm with a torque of

. A force is applied at point P in the horizontal direction of magnitude 10 N . plot the position, velocity and acceleration of point P over

of the crank angle. Also plot the forces at pins

and

. Make screen shots for each result and put all of them in one word file. The gravity is considered perpendicular to the plane of motion. Q2) Create a spring-mass system, as shown in the Figure below. The unstretched spring length is 5 cm and the material is steel. The size of the block is

. No friction is assumed. The force is

, where

is the time. The material is steel.
