(Solved): Using LTSpice, model the Zener diode circuit below. Use the provided diode model in bzx55c5v1.txt. ...

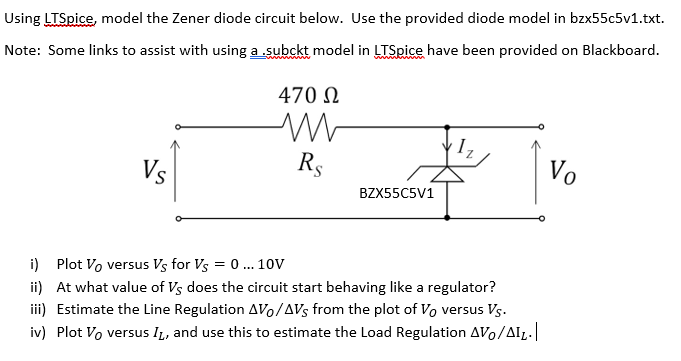

Using LTSpice, model the Zener diode circuit below. Use the provided diode model in bzx55c5v1.txt. Note: Some links to assist with using a subckt model in LTSpice have been provided on Blackboard. i) Plot $V_O$ versus $V_S$ for $V_S=0\dots 10\mathrm{V}$ ii) At what value of $V_S$ does the circuit start behaving like a regulator? iii) Estimate the Line Regulation $?V_O/?V_S$ from the plot of $V_O$ versus $V_S$. iv) Plot $V_O$ versus $I_L$, and use this to estimate the Load Regulation $?V_O/?{\mathrm{I}}_L$.
