(Solved): Using the principle of "Effective area method", determine the suitable length, width and thickness ...

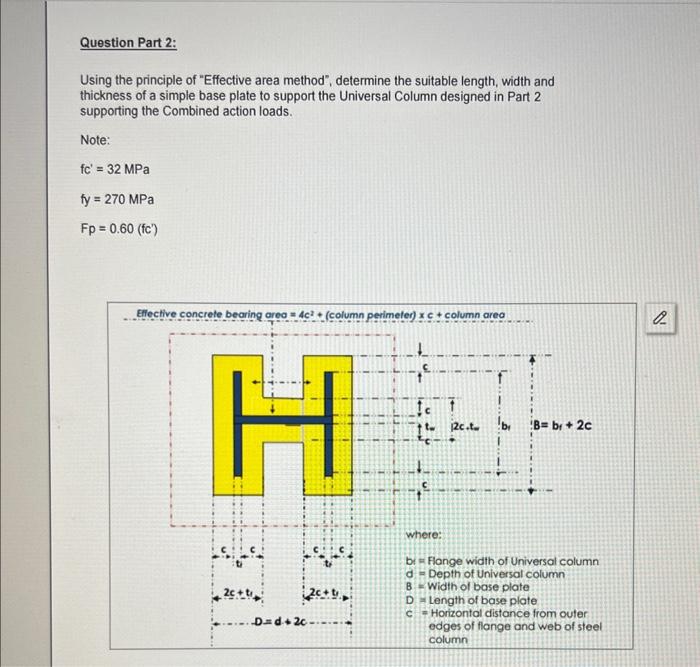

Using the principle of "Effective area method", determine the suitable length, width and thickness of a simple base plate to support the Universal Column designed in Part 2 supporting the Combined action loads. Note: $\begin{array}{l}{f}^{?}=32\mathrm{MPa}\\ fy=270\mathrm{MPa}\\ Fp=0.60\left({\mathrm{fc}}^{?}\right)\end{array}$ Ellective concrete bearing area $=4c^2+($ column berimeten $\times c+$ column area
