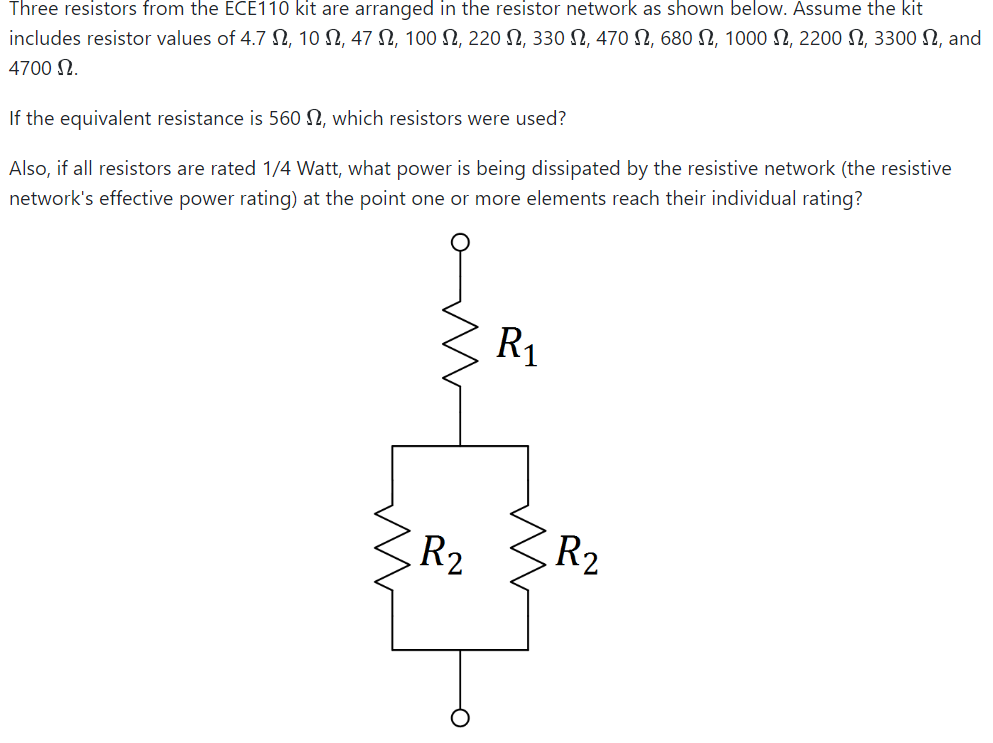

Three resistors from the ECE110 kit are arranged in the resistor network as shown below. Assume the kit includes resistor values of , and . If the equivalent resistance is , which resistors were used? Also, if all resistors are rated Watt, what power is being dissipated by the resistive network (the resistive network's effective power rating) at the point one or more elements reach their individual rating?
