(Solved): Vout (d) In the filter shown in figure 8 the ratio between the output AC voltage Vout and input vol ...

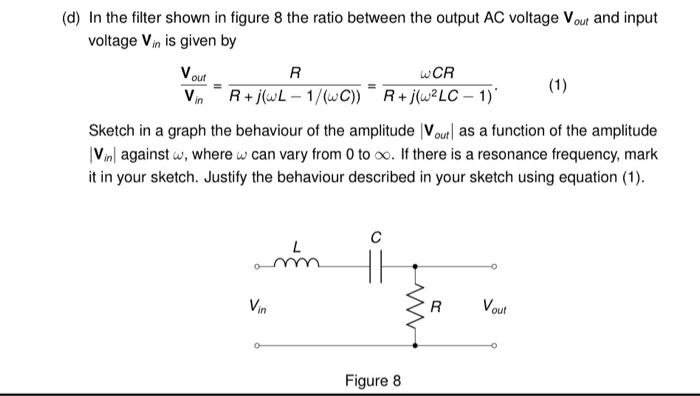

Vout (d) In the filter shown in figure 8 the ratio between the output AC voltage Vout and input voltage Vin is given by R WCR Vin R+ j(WL-1/(wC)) (1) R + j(W2LC - 1) Sketch in a graph the behaviour of the amplitude Vourl as a function of the amplitude Vin against w, where w can vary from 0 to . If there is a resonance frequency, mark it in your sketch. Justify the behaviour described in your sketch using equation (1). ? am Vin R Vout 0 Figure 8
