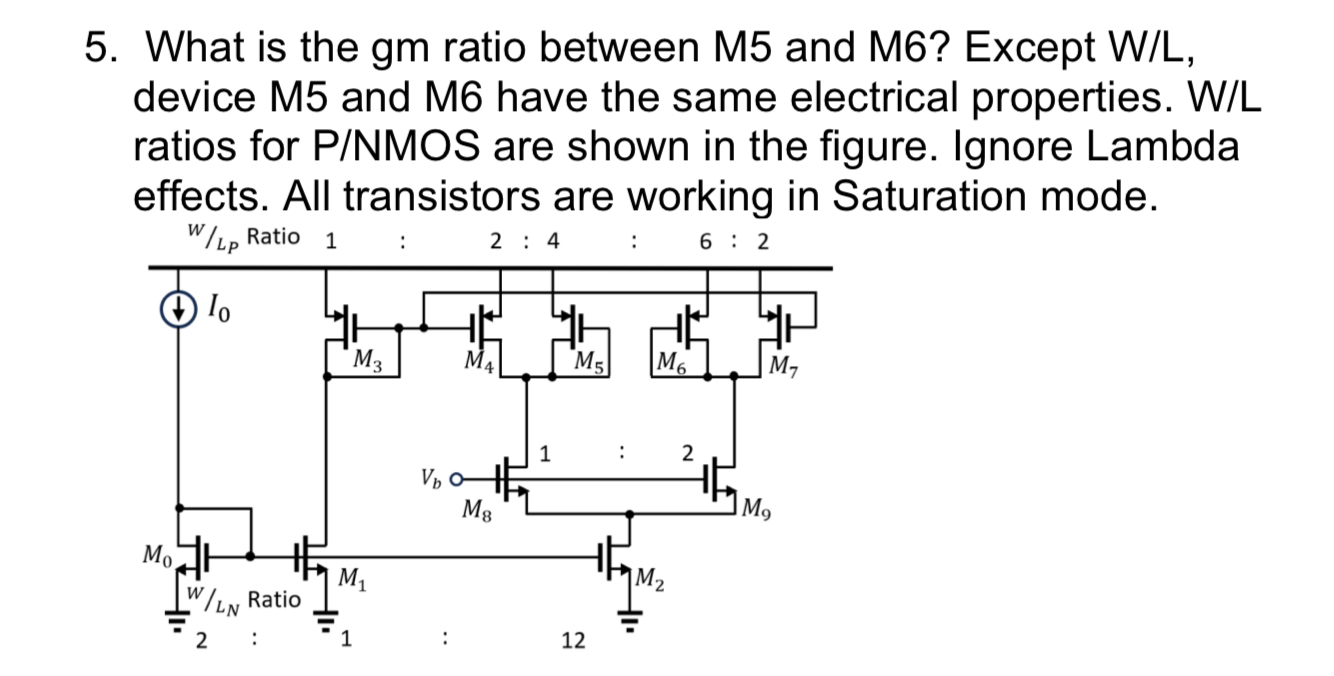

What is the gm ratio between M5 and M6? Except W/L, device M5 and M6 have the same electrical properties. W/L ratios for P/NMOS are shown in the figure. Ignore Lambda effects. All transistors are working in Saturation mode.
(^(W))/(L_(P))
Ratio 1 2 : 4 6 : 2

Question

What is the gm ratio between M5 and M6? Except W/L, device M5 and M6 have the same electrical properties. W/L ratios for P/NMOS are shown in the figure. Ignore Lambda effects. All transistors are working in Saturation mode.

(^(W))/(L_(P))

Ratio 1 2 : 4 6 : 2
