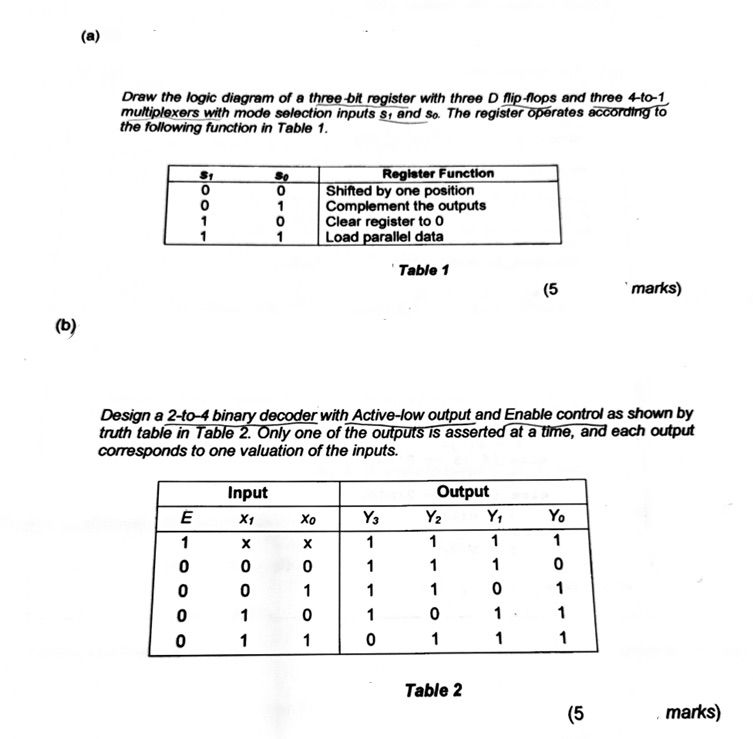

(a) Draw the logic diagram of a three-bit register with three D flip-flops and three 4-to-1 multiplexers with mode selection inputs s, and so. The register operates according to the following function in Table 1. Table 1 (b) Design a 2-to-4 binary decoder with Active-low output and Enable control as shown by truth table in Table 2. Only one of the outputs is asserted at a time, and each output corresponds to one valuation of the inputs. Table 2 (c)

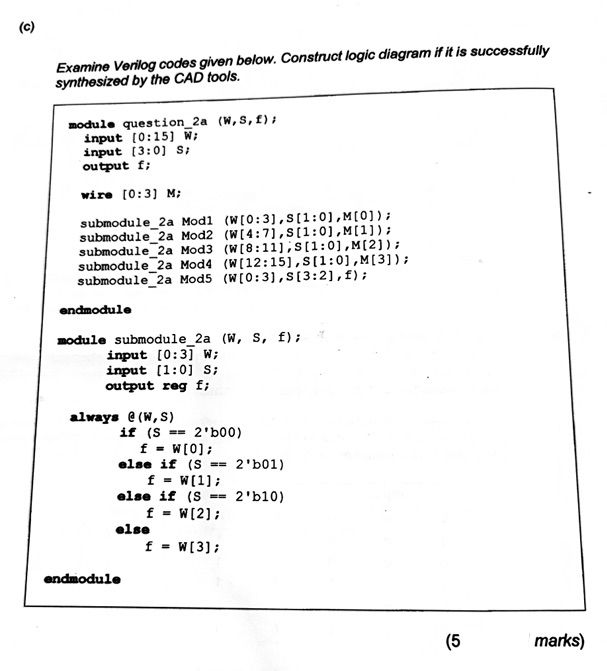

Examine Verilog codes given below. Construct logic diagram if it is successfully synthesized by the CAD tools.
```
module question_2a (W,S,f);
input [0:15] W;
input [3:0] S;
output f;
wire [0:3] M;
submodule_2a Mod1 (W[0:3],S[1:0],M[0]);
submodule_2a Mod2 (W[4:7],S[1:0],M[1]);
submodule_2a Mod3 (W[8:11];S[1:0],M[2]);
submodule_2a Mod4 (W[12:15],S[1:0],M[3]);
submodule_2a Mod5 (W[0:3],S[3:2],f);
endmodule
module submodule_2a (W, S, f);
input [0:3] W;
input [1:0] S;
output reg f;
always @(W,S)
if ( }S==\mp@subsup{2}{}{\prime}b00\mathrm{ )
f = W[0];
else if (S == 2'b01)
f = W[1];
else if (S == 2'b10)
f = W[2];
else
f = W[3];
endmodul
```
