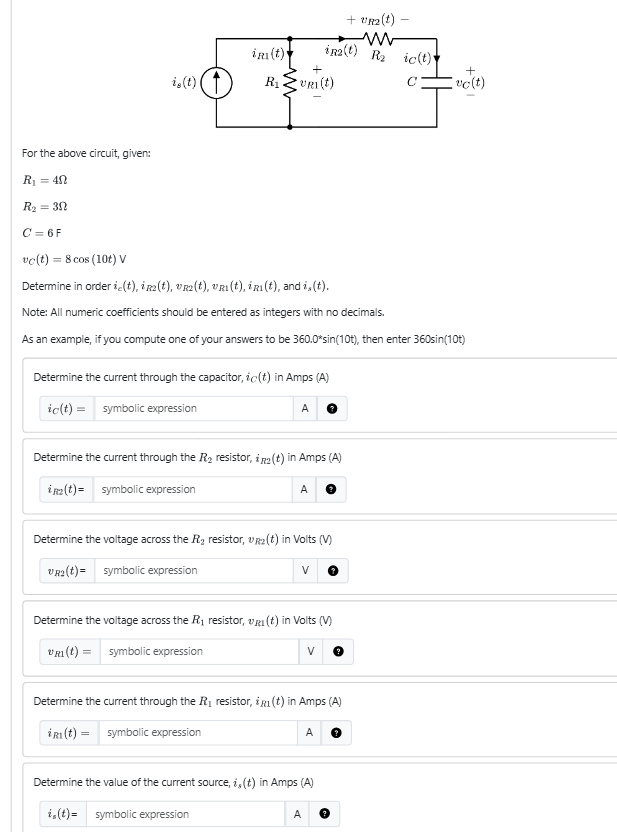

For the above circuit, given:
R_(1)=4\Omega
R_(2)=3\Omega
C=6F
v_(C)(t)=8cos(10t)V
Determine in order i_(c)(t),i_(R2)(t),v_(R2)(t),v_(R1)(t),i_(R1)(t), and i_(s)(t).
Note: All numeric coefficients should be entered as integers with no decimals.
As an example, if you compute one of your answers to be 360.0^(*)sin(10t), then enter 360sin(10t)
Determine the current through the capacitor, i_(C)(t) in Amps (A)
i_(C)(t)
Determine the current through the R_(2) resistor, i_(R2)(t) in Amps (A)
i_(R)
Determine the voltage across the R_(2) resistor, v_(R2)(t) in Volts ( V )
Determine the voltage across the R_(1) resistor, v_(R1)(t) in Volts ( V )
Determine the current through the R_(1) resistor, i_(R1)(t) in Amps (A)
i_(R1)
Determine the value of the current source, i_(s)(t) in Amps (A)
